LMC Sassino
The lightweight caravan for beginners
That's what makes the Sassino special:

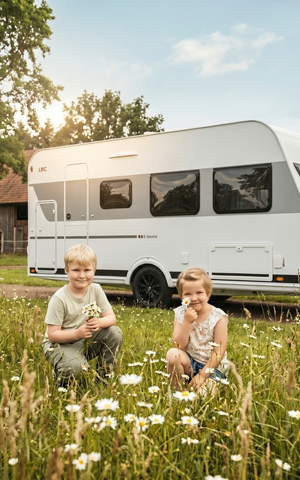

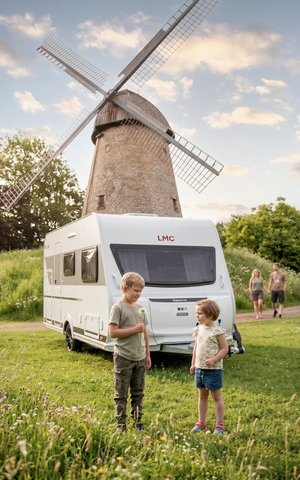

The LMC Sassino is a lightweight and narrow caravan designed for beginners, young couples, and families. With a technically permissible total weight of up to 1,200 kg, the Sassino series is the lightest in the entire LMC product portfolio. Its narrow body width (2.13 m) and low standard weight make it the ideal caravan for electric cars.

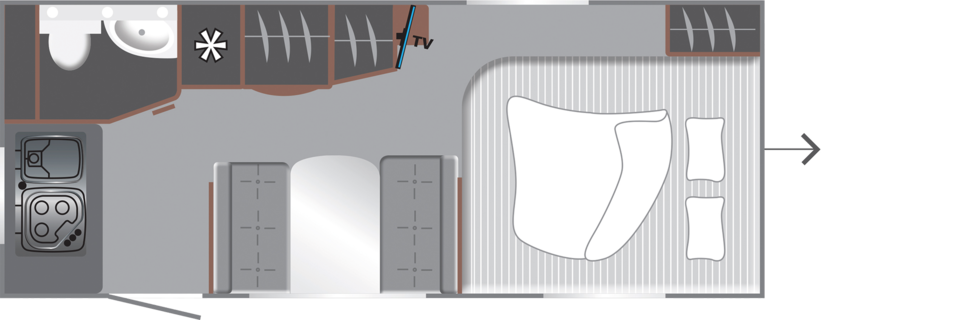

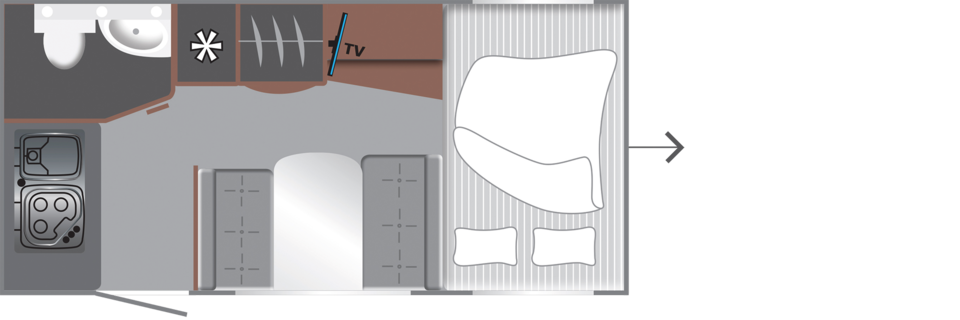

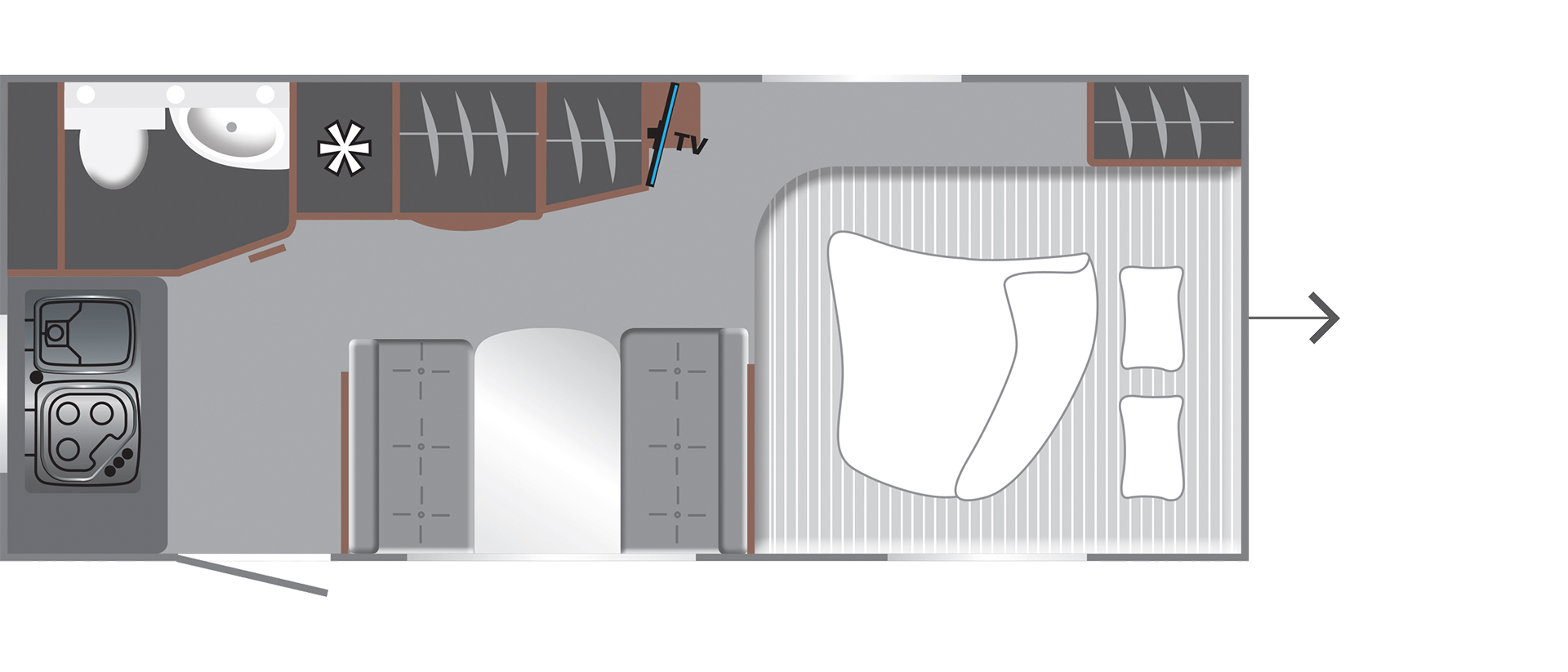

The Sassino series offers 5 layouts, including one with single beds and two models with bunk beds. The Sassino 470 K, with its bed solutions, is perfect for camping beginners and families looking for a caravan for 5 people or more. In 2021, the comfortable and safe living environment of the Sassino 470 K layout was awarded the DCC Safety Award.
Experience great camping pleasure at a small price with the LMC Sassino. Appreciate the interior design with its simple, light, and warm colors, along with distinctive black accents. With their rear kitchen, the Sassino 450 D and the 430 D layout offer plenty of space when cooking.
Learn more about the LMC Sassino!
a) All prices are recommended retail prices in EUR, based on the German retail prices. Prices in other countries may differ due to currency, country specific VAT, country specification, transportation charges or import duties. Your local dealer informes you about the applicable prices, taxes and duties for your country.
*The technically permissible total mass is a value specified by the manufacturer, which the vehicle must not exceed, even when loaded. It therefore has an influence on the permissible number of seats, options for selecting special equipment and remaining payload options.
Detailed information on weights and vehicle configuration can be found in our technical data, legal information section and in the configurator.
| Description | Value |
|---|---|
| Pricea) | 18600 |
| Total length | 623 |
| Exterior length | 500 |
| Interior length | 426 |
| Total width | 213 |
| Interior roof height max. | 198 |
| Total height | 265 |
| Weight in drivable condition (with standard equipment)* | 953 (905 - 1001)* |
| Manufacturer-specified dimensions for optional equipment* | 42 |
| Maximum permissible total weight* | 1100 |
| Floor, wall, roof thickness | 40 / 30 / 30 |
| Awning size | 905 |
| Berths standard / max. | 4 / 5 (○) |
| Front | 188 x 145 - 115 |
| Rear | 192 x 71 |
| Chassis |
|---|
| Premium-Chassis |
| Stability support |
| Diagonal swing axle |
| Steel rim incl. wheel hub cap with summer tires |
| Anti-sway coupling |
| Breakdown kit |
| Wheel shock absorbers |
| Cabine exterior |
|---|
| Service flap 750 x 300 mm front passenger side |
| Garage door |
| Two-part entrance door |
| hinged window incl. blackout blind and insect screen |
| Sidewall hammer finish sheet |
| Roof hood 280 x 280 mm (bathroom) incl. insect screen |
| Automotive tail light |
| Rear hinged window 900 x 520 mm incl. blackout blind and insect screen |
| Opening window bow 1,589 x 580 mm incl. blackout blind and insect screen |
| Bottle crate lid with gas strut |
| Roof hood clear glass 400 x 400 mm (living area) incl. blackout blind and insect screen |
| Cabine interior |
|---|
| Vanity unit with door |
| Coat hooks |
| Furniture construction and ventilated upholstery and mattresses for optimum air circulation |
| Bunk beds (load capacity 80 kg) each with its own window |
| Cold foam mattress 100mm in single and double beds incl. slatted frame |
| Gas pressure regulators on the slatted frames of the fixed beds |

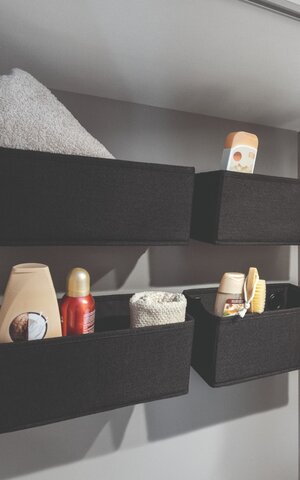

| Removable fabric boxes in the bathroom |
| Oval Mirror |
| Pad Sassino Silver Selection |

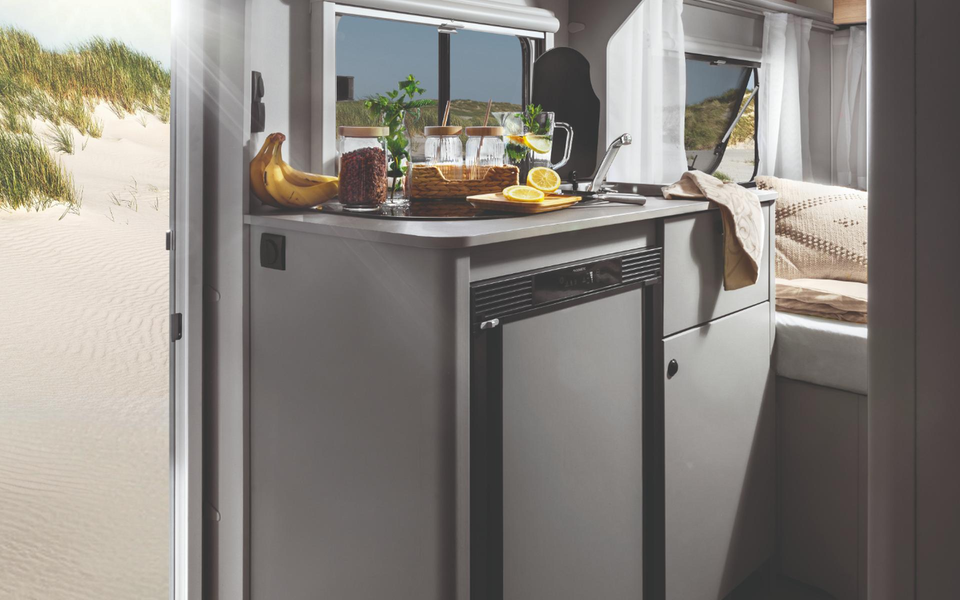

| Kitchen |
|---|
| Three-burner hob with integrated sink split and glass cover |
| Drawer with cutlery application |
| Compressor refrigerator 131.5 l with ice compartment |
| Water supply |
|---|
| Central waste water drainage |
| Cassette toilet |

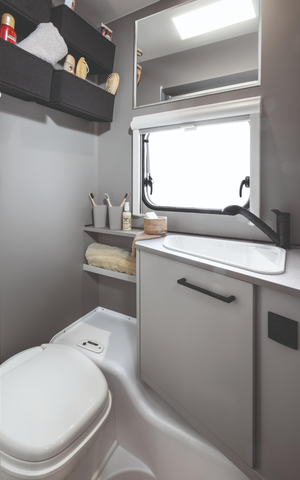

| Modern bathroom sink |
| Freshwater tank 12 ltr. |
| Multimedia |
|---|
| LMC Home ready |
| Gas/Electricity supply |
|---|
| CEE external connection for 230 V with RCD and charger |
| 400 W transformer |
| LED awning lighting |
| LED interior lighting |
| Ceiling lights (2 pieces) |
| Smoke alarm |
| Gas bottle box (for 2 x 11 kg) |
| Gas regulator 30 mbar with gas hose (with country-specific adapter) |
| Power input sidewall |
| Heating |
|---|
| Gas heating 3 kW |
| Long Life Technology |
|---|
| Underbody with high-performance XPS foam and GRP |
| Roof and front / rear section in GRP |
| 12-years-tightness-warranty |
| Package elements |
|---|
| Wheel shock absorbers |
| LED awning lighting |
| Andere Außenausstattungen |
|---|
| Service flap 750 x 300 mm front passenger side |
| Fahrzeugausstattung |
|---|
| Wheel shock absorbers |
| Anti-sway coupling |
| Fenster & Türen |
|---|
| Opening window bow 1,589 x 580 mm incl. blackout blind and insect screen |
| Garage door |
| Chassis |
|---|
| Shiny black alloy wheels with summer tires |
| Plate feet for crank stakes |
| Support wheel with support load indicator |
| anti-skid system |
| 17" shiny black alloy wheel with summer tires |
| Tow bar cover |
| Payload upgrade |
|---|
| Maximum chassis weight 1.360 kg / 1360 kg Chassis |
| Maximum chassis weight 1.200 kg / 1.360 kg Chassis |
| Cabine exterior |
|---|
| Sliding window (kitchen) incl. blackout blind and insect screen |
| Preparation for air conditioning incl. roof reinforcement |
| Roof hood clear glass 700 x 500 mm incl. blackout blind and insect screen |
| Spare wheel holder in bottle holder |
| Hinged bathroom window (frosted glass) incl. blackout blind and insect screen |
| Roof air conditioning (cooling and heating) |
| Cabine interior |
|---|
| Insect screen door in superstructure door |
| 3-seater bunk bed (load capacity 80 kg), each with its own window |
| Shower curtain |
| Wooden shower inlay |
| Pad Sassino Silver Selection |
| Water supply |
|---|
| Freshwater tank with filler pipe, 44 ltr. |
| Holding tank 25 ltr. with wheels |
| Therme for hot water supply 5 l (hot water mixer tap included) |
| Level sensor for fresh and waste water tank |
| Multimedia |
|---|
| TV preparation (1x12V socket, 2x antenna cable SAT/TV) |
| LMC Home |
| Gas/Electricity supply |
|---|
| Gas detector |

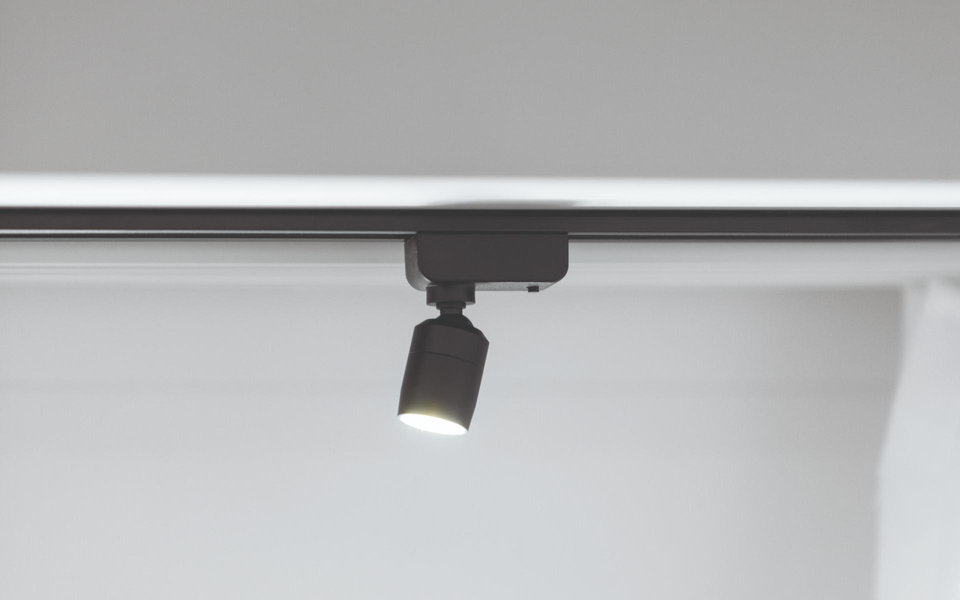

| Additional lightning (light rail incl. Spots) |
| Battery 95 AH AGM |
| 12 V main switch |
| Gas level sensor |
| 2x USB socket for power rail |
| Exterior socket 230 V / 12 V / TV |
| Heating |
|---|
| Electrical floor heating 230 V |
| Electric auxiliary heater 2 kW |
| Air circulation system for gas heating |
| Package elements |
|---|
| Gas level sensor |
| Wooden shower inlay |
| Shower basin |
| Freshwater tank with filler pipe, 44 ltr. |
| Level sensor for fresh and waste water tank |
| LMC Home |
| Shower curtain |
| Shower fitting |
| Tire pressure sensors |
| Support wheel with support load sensor |
| 12 V main switch |
| Voltage indicator for battery |
| Accu |
| Battery 95 AH AGM |
| Air circulation system for gas heating |
| 12 V ventilation system |
| Packages |
|---|
| Shower package |
| Sassino package |
| LMC Home sensor package |
| Autarchy package hot-air heating |
| Andere Außenausstattungen |
|---|
| Preparation for air conditioning incl. roof reinforcement |
| Spare wheel holder in bottle holder |
| Roof air conditioning (cooling and heating) |
| Elektro- und Gasversorgung |
|---|
| Exterior socket 230 V / 12 V / TV |
| Voltage indicator for battery |
| Accu |
| Battery 95 AH AGM |
| Gas detector |
| 2x USB socket for power rail |
| Additional lightning (light rail incl. Spots) |
| 12 V main switch |
| Fahrzeugausstattung |
|---|
| Plate feet for crank stakes |
| Support wheel with support load indicator |
| Fenster & Türen |
|---|
| Roof hood clear glass 700 x 500 mm incl. blackout blind and insect screen |
| Hinged bathroom window (frosted glass) incl. blackout blind and insect screen |
| Sliding window (kitchen) incl. blackout blind and insect screen |
| Heating |
|---|
| Electrical floor heating 230 V |
| Therme for hot water supply 5 l (hot water mixer tap included) |
| Electric auxiliary heater 2 kW |
| 12 V ventilation system |
| Air circulation system for gas heating |
| Weitere Innenausstattungen |
|---|
| 3-seater bunk bed (load capacity 80 kg), each with its own window |
| Insect screen door in superstructure door |
| Multimedia |
|---|
| TV preparation (1x12V socket, 2x antenna cable SAT/TV) |
| Wasserversorgung |
|---|
| Shower basin |
| Shower curtain |
| Shower fitting |
| Holding tank 25 ltr. with wheels |
| Freshwater tank with filler pipe, 44 ltr. |
| Payload upgrade |
|---|
| Maximum chassis weight 1.360 kg / 1360 kg Chassis |
| Maximum chassis weight 1.200 kg / 1.360 kg Chassis |
a) All prices are recommended retail prices in EUR, based on the German retail prices. Prices in other countries may differ due to currency, country specific VAT, country specification, transportation charges or import duties. Your local dealer informes you about the applicable prices, taxes and duties for your country.
*The technically permissible total mass is a value specified by the manufacturer, which the vehicle must not exceed, even when loaded. It therefore has an influence on the permissible number of seats, options for selecting special equipment and remaining payload options.
Detailed information on weights and vehicle configuration can be found in our technical data, legal information section and in the configurator.
| Description | Value |
|---|---|
| Pricea) | 18300 |
| Total length | 626 |
| Exterior length | 504 |
| Interior length | 430 |
| Total width | 213 |
| Interior roof height max. | 198 |
| Total height | 265 |
| Weight in drivable condition (with standard equipment)* | 927 (881 - 973)* |
| Manufacturer-specified dimensions for optional equipment* | 86 |
| Maximum permissible total weight* | 1100 |
| Floor, wall, roof thickness | 40 / 30 / 30 |
| Awning size | 909 |
| Berths standard / max. | 3 / 3 (○) |
| Front | 196 x 148 |
| Chassis |
|---|
| Premium-Chassis |
| Stability support |
| Diagonal swing axle |
| Steel rim incl. wheel hub cap with summer tires |
| Anti-sway coupling |
| Breakdown kit |
| Wheel shock absorbers |
| Cabine exterior |
|---|
| Service flap 1,000 x 420 mm front passenger side |
| Two-part entrance door |
| hinged window incl. blackout blind and insect screen |
| Sidewall hammer finish sheet |
| Roof hood 280 x 280 mm (bathroom) incl. insect screen |
| Automotive tail light |
| Rear hinged window 900 x 520 mm incl. blackout blind and insect screen |
| Bottle crate lid with gas strut |
| Roof hood clear glass 400 x 400 mm (living area) incl. blackout blind and insect screen |
| Cabine interior |
|---|
| Vanity unit with door |
| Coat hooks |
| Furniture construction and ventilated upholstery and mattresses for optimum air circulation |
| Cold foam mattress 100mm in single and double beds incl. slatted frame |
| Gas pressure regulators on the slatted frames of the fixed beds |
| Removable fabric boxes in the bathroom |
| Oval Mirror |
| Pad Sassino Silver Selection |
| Kitchen |
|---|
| Three-burner hob with integrated sink split and glass cover |
| Drawer with cutlery application |
| Compressor refrigerator 131.5 l with ice compartment |
| Water supply |
|---|
| Central waste water drainage |
| Cassette toilet |
| Modern bathroom sink |
| Freshwater tank 12 ltr. |
| Multimedia |
|---|
| LMC Home ready |
| Gas/Electricity supply |
|---|
| CEE external connection for 230 V with RCD and charger |
| 400 W transformer |
| LED awning lighting |
| LED interior lighting |
| Ceiling lights (2 pieces) |
| Smoke alarm |
| Gas bottle box (for 2 x 11 kg) |
| Gas regulator 30 mbar with gas hose (with country-specific adapter) |
| Power input sidewall |
| Heating |
|---|
| Gas heating 3 kW |
| Long Life Technology |
|---|
| Underbody with high-performance XPS foam and GRP |
| Roof and front / rear section in GRP |
| 12-years-tightness-warranty |
| Package elements |
|---|
| Wheel shock absorbers |
| LED awning lighting |
| Andere Außenausstattungen |
|---|
| Service flap 1,000 x 420 mm front passenger side |
| Fahrzeugausstattung |
|---|
| Wheel shock absorbers |
| Anti-sway coupling |
| Chassis |
|---|
| Shiny black alloy wheels with summer tires |
| Plate feet for crank stakes |
| Support wheel with support load indicator |
| anti-skid system |
| 17" shiny black alloy wheel with summer tires |
| Tow bar cover |
| Payload upgrade |
|---|
| Maximum chassis weight 1.360 kg / 1360 kg Chassis |
| Maximum chassis weight 1.200 kg / 1.360 kg Chassis |
| Cabine exterior |
|---|
| Sliding window (kitchen) incl. blackout blind and insect screen |
| Preparation for air conditioning incl. roof reinforcement |
| Roof hood clear glass 700 x 500 mm incl. blackout blind and insect screen |
| Spare wheel holder in bottle holder |
| Service flap 1,000 x 420 mm front driver's side |
| Hinged bathroom window (frosted glass) incl. blackout blind and insect screen |
| Opening window bow 1,589 x 580 mm incl. blackout blind and insect screen |
| Roof air conditioning (cooling and heating) |
| Cabine interior |
|---|
| Insect screen door in superstructure door |
| Premium mattress 130mm incl. slatted base frame |
| Shower curtain |
| Wooden shower inlay |
| Pad Sassino Silver Selection |
| Water supply |
|---|
| Freshwater tank with filler pipe, 44 ltr. |
| Holding tank 25 ltr. with wheels |
| Therme for hot water supply 5 l (hot water mixer tap included) |
| Level sensor for fresh and waste water tank |
| Multimedia |
|---|
| TV preparation (1x12V socket, 2x antenna cable SAT/TV) |
| LMC Home |
| Gas/Electricity supply |
|---|
| Gas detector |
| Additional lightning (light rail incl. Spots) |
| Battery 95 AH AGM |
| 12 V main switch |
| Gas level sensor |
| 2x USB socket for power rail |
| Exterior socket 230 V / 12 V / TV |
| Heating |
|---|
| Electrical floor heating 230 V |
| Electric auxiliary heater 2 kW |
| Air circulation system for gas heating |
| Package elements |
|---|
| Gas level sensor |
| Wooden shower inlay |
| Shower basin |
| Freshwater tank with filler pipe, 44 ltr. |
| Level sensor for fresh and waste water tank |
| LMC Home |
| Shower curtain |
| Shower fitting |
| Tire pressure sensors |
| Support wheel with support load sensor |
| 12 V main switch |
| Voltage indicator for battery |
| Accu |
| Battery 95 AH AGM |
| Air circulation system for gas heating |
| 12 V ventilation system |
| Packages |
|---|
| Shower package |
| Sassino package |
| LMC Home sensor package |
| Autarchy package hot-air heating |
| Andere Außenausstattungen |
|---|
| Preparation for air conditioning incl. roof reinforcement |
| Spare wheel holder in bottle holder |
| Roof air conditioning (cooling and heating) |
| Service flap 1,000 x 420 mm front driver's side |
| Elektro- und Gasversorgung |
|---|
| Exterior socket 230 V / 12 V / TV |
| Voltage indicator for battery |
| Accu |
| Battery 95 AH AGM |
| Gas detector |
| 2x USB socket for power rail |
| Additional lightning (light rail incl. Spots) |
| 12 V main switch |
| Fahrzeugausstattung |
|---|
| Plate feet for crank stakes |
| Support wheel with support load indicator |
| Fenster & Türen |
|---|
| Roof hood clear glass 700 x 500 mm incl. blackout blind and insect screen |
| Opening window bow 1,589 x 580 mm incl. blackout blind and insect screen |
| Hinged bathroom window (frosted glass) incl. blackout blind and insect screen |
| Sliding window (kitchen) incl. blackout blind and insect screen |
| Heating |
|---|
| Electrical floor heating 230 V |
| Therme for hot water supply 5 l (hot water mixer tap included) |
| Electric auxiliary heater 2 kW |
| 12 V ventilation system |
| Air circulation system for gas heating |
| Weitere Innenausstattungen |
|---|
| Premium mattress 130mm incl. slatted base frame |
| Insect screen door in superstructure door |
| Multimedia |
|---|
| TV preparation (1x12V socket, 2x antenna cable SAT/TV) |
| Wasserversorgung |
|---|
| Shower basin |
| Shower curtain |
| Shower fitting |
| Holding tank 25 ltr. with wheels |
| Freshwater tank with filler pipe, 44 ltr. |
| Payload upgrade |
|---|
| Maximum chassis weight 1.360 kg / 1360 kg Chassis |
| Maximum chassis weight 1.200 kg / 1.360 kg Chassis |
a) All prices are recommended retail prices in EUR, based on the German retail prices. Prices in other countries may differ due to currency, country specific VAT, country specification, transportation charges or import duties. Your local dealer informes you about the applicable prices, taxes and duties for your country.
*The technically permissible total mass is a value specified by the manufacturer, which the vehicle must not exceed, even when loaded. It therefore has an influence on the permissible number of seats, options for selecting special equipment and remaining payload options.
Detailed information on weights and vehicle configuration can be found in our technical data, legal information section and in the configurator.
| Description | Value |
|---|---|
| Pricea) | 20200 |
| Total length | 709 |
| Exterior length | 594 |
| Interior length | 520 |
| Total width | 213 |
| Interior roof height max. | 198 |
| Total height | 265 |
| Weight in drivable condition (with standard equipment)* | 1029 (978 - 1080)* |
| Manufacturer-specified dimensions for optional equipment* | 69 |
| Maximum permissible total weight* | 1200 |
| Floor, wall, roof thickness | 40 / 30 / 30 |
| Awning size | 999 |
| Berths standard / max. | 3 / 3 (○) |
| Front | 200 x 157 |
| Middle | 169 x 95 |
| Chassis |
|---|
| Premium-Chassis |
| Stability support |
| Diagonal swing axle |
| Steel rim incl. wheel hub cap with summer tires |
| Anti-sway coupling |
| Breakdown kit |
| Wheel shock absorbers |
| Cabine exterior |
|---|
| Service flap 1,000 x 420 mm front passenger side |
| Two-part entrance door |
| hinged window incl. blackout blind and insect screen |
| Sidewall hammer finish sheet |
| Roof hood 280 x 280 mm (bathroom) incl. insect screen |
| Automotive tail light |
| Rear hinged window 900 x 520 mm incl. blackout blind and insect screen |
| Bottle crate lid with gas strut |
| Roof hood clear glass 400 x 400 mm (living area) incl. blackout blind and insect screen |
| Cabine interior |
|---|
| Vanity unit with door |
| Coat hooks |
| Furniture construction and ventilated upholstery and mattresses for optimum air circulation |
| Cold foam mattress 100mm in single and double beds incl. slatted frame |
| Gas pressure regulators on the slatted frames of the fixed beds |
| Removable fabric boxes in the bathroom |
| Oval Mirror |
| Pad Sassino Silver Selection |
| Kitchen |
|---|
| Three-burner hob with integrated sink split and glass cover |
| Drawer with cutlery application |
| Compressor refrigerator 131.5 l with ice compartment |
| Water supply |
|---|
| Central waste water drainage |
| Cassette toilet |
| Modern bathroom sink |
| Freshwater tank 12 ltr. |
| Multimedia |
|---|
| LMC Home ready |
| Gas/Electricity supply |
|---|
| CEE external connection for 230 V with RCD and charger |
| 400 W transformer |
| LED awning lighting |
| LED interior lighting |
| Ceiling lights (2 pieces) |
| Smoke alarm |
| Gas bottle box (for 2 x 11 kg) |
| Gas regulator 30 mbar with gas hose (with country-specific adapter) |
| Power input sidewall |
| Heating |
|---|
| Gas heating 3 kW |
| Long Life Technology |
|---|
| Underbody with high-performance XPS foam and GRP |
| Roof and front / rear section in GRP |
| 12-years-tightness-warranty |
| Package elements |
|---|
| Wheel shock absorbers |
| LED awning lighting |
| Andere Außenausstattungen |
|---|
| Service flap 1,000 x 420 mm front passenger side |
| Fahrzeugausstattung |
|---|
| Wheel shock absorbers |
| Anti-sway coupling |
| Chassis |
|---|
| Shiny black alloy wheels with summer tires |
| Plate feet for crank stakes |
| Support wheel with support load indicator |
| anti-skid system |
| 17" shiny black alloy wheel with summer tires |
| Tow bar cover |
| Payload upgrade |
|---|
| Maximum chassis weight 1.360 kg / 1360 kg Chassis |
| Maximum chassis weight 1.500 kg / 1.500 kg Chassis |
| Cabine exterior |
|---|
| Sliding window (kitchen) incl. blackout blind and insect screen |
| Preparation for air conditioning incl. roof reinforcement |
| Roof hood clear glass 700 x 500 mm incl. blackout blind and insect screen |
| Spare wheel holder in bottle holder |
| Hinged bathroom window (frosted glass) incl. blackout blind and insect screen |
| Roof air conditioning (cooling and heating) |
| Cabine interior |
|---|
| Insect screen door in superstructure door |
| Premium mattress 130mm incl. slatted base frame |
| Shower curtain |
| Wooden shower inlay |
| Pad Sassino Silver Selection |
| Water supply |
|---|
| Freshwater tank with filler pipe, 44 ltr. |
| Holding tank 25 ltr. with wheels |
| Therme for hot water supply 5 l (hot water mixer tap included) |
| Level sensor for fresh and waste water tank |
| Multimedia |
|---|
| TV preparation (1x12V socket, 2x antenna cable SAT/TV) |
| LMC Home |
| Gas/Electricity supply |
|---|
| Gas detector |
| Additional lightning (light rail incl. Spots) |
| Battery 95 AH AGM |
| 12 V main switch |
| Gas level sensor |
| 2x USB socket for power rail |
| Exterior socket 230 V / 12 V / TV |
| Heating |
|---|
| Electrical floor heating 230 V |
| Electric auxiliary heater 2 kW |
| Air circulation system for gas heating |
| Package elements |
|---|
| Gas level sensor |
| Wooden shower inlay |
| Shower basin |
| Freshwater tank with filler pipe, 44 ltr. |
| Level sensor for fresh and waste water tank |
| LMC Home |
| Shower curtain |
| Shower fitting |
| Tire pressure sensors |
| Support wheel with support load sensor |
| 12 V main switch |
| Voltage indicator for battery |
| Accu |
| Battery 95 AH AGM |
| Air circulation system for gas heating |
| 12 V ventilation system |
| Packages |
|---|
| Shower package |
| Sassino package |
| LMC Home sensor package |
| Autarchy package hot-air heating |
| Andere Außenausstattungen |
|---|
| Preparation for air conditioning incl. roof reinforcement |
| Spare wheel holder in bottle holder |
| Roof air conditioning (cooling and heating) |
| Elektro- und Gasversorgung |
|---|
| Exterior socket 230 V / 12 V / TV |
| Voltage indicator for battery |
| Accu |
| Battery 95 AH AGM |
| Gas detector |
| 2x USB socket for power rail |
| Additional lightning (light rail incl. Spots) |
| 12 V main switch |
| Fahrzeugausstattung |
|---|
| Plate feet for crank stakes |
| Support wheel with support load indicator |
| Fenster & Türen |
|---|
| Roof hood clear glass 700 x 500 mm incl. blackout blind and insect screen |
| Hinged bathroom window (frosted glass) incl. blackout blind and insect screen |
| Sliding window (kitchen) incl. blackout blind and insect screen |
| Heating |
|---|
| Electrical floor heating 230 V |
| Therme for hot water supply 5 l (hot water mixer tap included) |
| Electric auxiliary heater 2 kW |
| 12 V ventilation system |
| Air circulation system for gas heating |
| Weitere Innenausstattungen |
|---|
| Premium mattress 130mm incl. slatted base frame |
| Insect screen door in superstructure door |
| Multimedia |
|---|
| TV preparation (1x12V socket, 2x antenna cable SAT/TV) |
| Wasserversorgung |
|---|
| Shower basin |
| Shower curtain |
| Shower fitting |
| Holding tank 25 ltr. with wheels |
| Freshwater tank with filler pipe, 44 ltr. |
| Payload upgrade |
|---|
| Maximum chassis weight 1.360 kg / 1360 kg Chassis |
| Maximum chassis weight 1.500 kg / 1.500 kg Chassis |
a) All prices are recommended retail prices in EUR, based on the German retail prices. Prices in other countries may differ due to currency, country specific VAT, country specification, transportation charges or import duties. Your local dealer informes you about the applicable prices, taxes and duties for your country.
*The technically permissible total mass is a value specified by the manufacturer, which the vehicle must not exceed, even when loaded. It therefore has an influence on the permissible number of seats, options for selecting special equipment and remaining payload options.
Detailed information on weights and vehicle configuration can be found in our technical data, legal information section and in the configurator.
| Description | Value |
|---|---|
| Pricea) | 19000 |
| Total length | 676 |
| Exterior length | 554 |
| Interior length | 480 |
| Total width | 213 |
| Interior roof height max. | 198 |
| Total height | 265 |
| Weight in drivable condition (with standard equipment)* | 965 (917 - 1013)* |
| Manufacturer-specified dimensions for optional equipment* | 141 |
| Maximum permissible total weight* | 1200 |
| Floor, wall, roof thickness | 40 / 30 / 30 |
| Awning size | 959 |
| Berths standard / max. | 3 / 3 (○) |
| Front | 192 x 92 |
| Rear | 200 - 83 x 195 - 83 |
| Chassis |
|---|
| Premium-Chassis |
| Stability support |
| Diagonal swing axle |
| Steel rim incl. wheel hub cap with summer tires |
| Anti-sway coupling |
| Breakdown kit |
| Wheel shock absorbers |
| Cabine exterior |
|---|
| Service flap 1,000 x 420 mm Rear passenger side |
| Two-part entrance door |
| hinged window incl. blackout blind and insect screen |
| Sidewall hammer finish sheet |
| Roof hood 280 x 280 mm (bathroom) incl. insect screen |
| Automotive tail light |
| Opening window bow 1,589 x 580 mm incl. blackout blind and insect screen |
| Bottle crate lid with gas strut |
| Roof hood clear glass 400 x 400 mm (living area) incl. blackout blind and insect screen |
| Cabine interior |
|---|
| Vanity unit with door |
| Conversion of single bed to double bed with extendable slats |
| Coat hooks |
| Furniture construction and ventilated upholstery and mattresses for optimum air circulation |
| Cold foam mattress 100mm in single and double beds incl. slatted frame |
| Gas pressure regulators on the slatted frames of the fixed beds |
| Removable fabric boxes in the bathroom |
| Oval Mirror |
| Pad Sassino Silver Selection |
| Kitchen |
|---|
| Three-burner hob with integrated sink split and glass cover |
| Drawer with cutlery application |
| Compressor refrigerator 83 l with ice compartment |
| Water supply |
|---|
| Central waste water drainage |
| Cassette toilet |
| Modern bathroom sink |
| Freshwater tank 12 ltr. |
| Multimedia |
|---|
| LMC Home ready |
| Gas/Electricity supply |
|---|
| CEE external connection for 230 V with RCD and charger |
| 400 W transformer |
| LED awning lighting |
| LED interior lighting |
| Ceiling lights (2 pieces) |
| Smoke alarm |
| Gas bottle box (for 2 x 11 kg) |
| Gas regulator 30 mbar with gas hose (with country-specific adapter) |
| Power input sidewall |
| Heating |
|---|
| Gas heating 3 kW |
| Long Life Technology |
|---|
| Underbody with high-performance XPS foam and GRP |
| Roof and front / rear section in GRP |
| 12-years-tightness-warranty |
| Package elements |
|---|
| Wheel shock absorbers |
| LED awning lighting |
| Andere Außenausstattungen |
|---|
| Service flap 1,000 x 420 mm Rear passenger side |
| Fahrzeugausstattung |
|---|
| Wheel shock absorbers |
| Anti-sway coupling |
| Fenster & Türen |
|---|
| Opening window bow 1,589 x 580 mm incl. blackout blind and insect screen |
| Weitere Innenausstattungen |
|---|
| Conversion of single bed to double bed with extendable slats |
| Chassis |
|---|
| Shiny black alloy wheels with summer tires |
| Plate feet for crank stakes |
| Support wheel with support load indicator |
| anti-skid system |
| 17" shiny black alloy wheel with summer tires |
| Tow bar cover |
| Payload upgrade |
|---|
| Maximum chassis weight 1.360 kg / 1360 kg Chassis |
| Cabine exterior |
|---|
| Sliding window (kitchen) incl. blackout blind and insect screen |
| Preparation for air conditioning incl. roof reinforcement |
| Roof hood clear glass 700 x 500 mm incl. blackout blind and insect screen |
| Spare wheel holder in bottle holder |
| Service hatch 1,000 x 420 mm rear driver's side |
| Hinged bathroom window (frosted glass) incl. blackout blind and insect screen |
| Rear hinged window 1,589 x 580 mm incl. blackout blind and insect screen |
| Roof air conditioning (cooling and heating) |
| Cabine interior |
|---|
| Insect screen door in superstructure door |
| Premium mattress 130mm incl. slatted base frame |
| Shower curtain |
| Wooden shower inlay |
| Pad Sassino Silver Selection |
| Water supply |
|---|
| Freshwater tank with filler pipe, 44 ltr. |
| Holding tank 25 ltr. with wheels |
| Therme for hot water supply 5 l (hot water mixer tap included) |
| Level sensor for fresh and waste water tank |
| Multimedia |
|---|
| TV preparation (1x12V socket, 2x antenna cable SAT/TV) |
| LMC Home |
| Gas/Electricity supply |
|---|
| Gas detector |
| Additional lightning (light rail incl. Spots) |
| Battery 95 AH AGM |
| 12 V main switch |
| Gas level sensor |
| 2x USB socket for power rail |
| Exterior socket 230 V / 12 V / TV |
| Heating |
|---|
| Electrical floor heating 230 V |
| Electric auxiliary heater 2 kW |
| Air circulation system for gas heating |
| Package elements |
|---|
| Gas level sensor |
| Wooden shower inlay |
| Shower basin |
| Freshwater tank with filler pipe, 44 ltr. |
| Level sensor for fresh and waste water tank |
| LMC Home |
| Shower curtain |
| Shower fitting |
| Tire pressure sensors |
| Support wheel with support load sensor |
| 12 V main switch |
| Voltage indicator for battery |
| Accu |
| Battery 95 AH AGM |
| Air circulation system for gas heating |
| 12 V ventilation system |
| Packages |
|---|
| Shower package |
| Sassino package |
| LMC Home sensor package |
| Autarchy package hot-air heating |
| Andere Außenausstattungen |
|---|
| Preparation for air conditioning incl. roof reinforcement |
| Spare wheel holder in bottle holder |
| Roof air conditioning (cooling and heating) |
| Service hatch 1,000 x 420 mm rear driver's side |
| Elektro- und Gasversorgung |
|---|
| Exterior socket 230 V / 12 V / TV |
| Voltage indicator for battery |
| Accu |
| Battery 95 AH AGM |
| Gas detector |
| 2x USB socket for power rail |
| Additional lightning (light rail incl. Spots) |
| 12 V main switch |
| Fahrzeugausstattung |
|---|
| Plate feet for crank stakes |
| Support wheel with support load indicator |
| Fenster & Türen |
|---|
| Roof hood clear glass 700 x 500 mm incl. blackout blind and insect screen |
| Rear hinged window 1,589 x 580 mm incl. blackout blind and insect screen |
| Hinged bathroom window (frosted glass) incl. blackout blind and insect screen |
| Sliding window (kitchen) incl. blackout blind and insect screen |
| Heating |
|---|
| Electrical floor heating 230 V |
| Therme for hot water supply 5 l (hot water mixer tap included) |
| Electric auxiliary heater 2 kW |
| 12 V ventilation system |
| Air circulation system for gas heating |
| Weitere Innenausstattungen |
|---|
| Premium mattress 130mm incl. slatted base frame |
| Insect screen door in superstructure door |
| Multimedia |
|---|
| TV preparation (1x12V socket, 2x antenna cable SAT/TV) |
| Wasserversorgung |
|---|
| Shower basin |
| Shower curtain |
| Shower fitting |
| Holding tank 25 ltr. with wheels |
| Freshwater tank with filler pipe, 44 ltr. |
| Payload upgrade |
|---|
| Maximum chassis weight 1.360 kg / 1360 kg Chassis |
a) All prices are recommended retail prices in EUR, based on the German retail prices. Prices in other countries may differ due to currency, country specific VAT, country specification, transportation charges or import duties. Your local dealer informes you about the applicable prices, taxes and duties for your country.
*The technically permissible total mass is a value specified by the manufacturer, which the vehicle must not exceed, even when loaded. It therefore has an influence on the permissible number of seats, options for selecting special equipment and remaining payload options.
Detailed information on weights and vehicle configuration can be found in our technical data, legal information section and in the configurator.
| Description | Value |
|---|---|
| Pricea) | 20400 |
| Total length | 715 |
| Exterior length | 595 |
| Interior length | 521 |
| Total width | 213 |
| Interior roof height max. | 198 |
| Total height | 265 |
| Weight in drivable condition (with standard equipment)* | 1068 (1015 - 1121)* |
| Manufacturer-specified dimensions for optional equipment* | 164 |
| Maximum permissible total weight* | 1360 |
| Floor, wall, roof thickness | 40 / 30 / 30 |
| Awning size | 1000 |
| Berths standard / max. | 6 / 7 (○) |
| Front | 189 x 152 |
| Middle | 188 x 122 |
| Rear | 190 x 60 |
| Chassis |
|---|
| Premium-Chassis |
| Stability support |
| Diagonal swing axle |
| Steel rim incl. wheel hub cap with summer tires |
| Anti-sway coupling |
| Breakdown kit |
| Wheel shock absorbers |
| Cabine exterior |
|---|
| Service flap 1,000 x 420 mm front passenger side |
| Garage door |
| Two-part entrance door |
| hinged window incl. blackout blind and insect screen |
| Sidewall hammer finish sheet |
| Roof hood 280 x 280 mm (bathroom) incl. insect screen |
| Automotive tail light |
| Rear hinged window 900 x 520 mm incl. blackout blind and insect screen |
| Bottle crate lid with gas strut |
| Roof hood clear glass 400 x 400 mm (living area) incl. blackout blind and insect screen |
| Cabine interior |
|---|
| Vanity unit with door |
| Coat hooks |
| Furniture construction and ventilated upholstery and mattresses for optimum air circulation |
| Bunk beds (load capacity 80 kg) each with its own window |
| Cold foam mattress 100mm in single and double beds incl. slatted frame |
| Gas pressure regulators on the slatted frames of the fixed beds |
| Removable fabric boxes in the bathroom |
| Oval Mirror |
| Pad Sassino Silver Selection |
| Kitchen |
|---|
| Three-burner hob with integrated sink split and glass cover |
| Drawer with cutlery application |
| Compressor refrigerator 131.5 l with ice compartment |
| Water supply |
|---|
| Central waste water drainage |
| Cassette toilet |
| Modern bathroom sink |
| Freshwater tank 12 ltr. |
| Multimedia |
|---|
| LMC Home ready |
| Gas/Electricity supply |
|---|
| CEE external connection for 230 V with RCD and charger |
| 400 W transformer |
| LED awning lighting |
| LED interior lighting |
| Ceiling lights (2 pieces) |
| Smoke alarm |
| Gas bottle box (for 2 x 11 kg) |
| Gas regulator 30 mbar with gas hose (with country-specific adapter) |
| Power input sidewall |
| Heating |
|---|
| Gas heating 3 kW |
| Long Life Technology |
|---|
| Underbody with high-performance XPS foam and GRP |
| Roof and front / rear section in GRP |
| 12-years-tightness-warranty |
| Package elements |
|---|
| Wheel shock absorbers |
| LED awning lighting |
| Andere Außenausstattungen |
|---|
| Service flap 1,000 x 420 mm front passenger side |
| Fahrzeugausstattung |
|---|
| Wheel shock absorbers |
| Anti-sway coupling |
| Fenster & Türen |
|---|
| Garage door |
| Chassis |
|---|
| Shiny black alloy wheels with summer tires |
| Plate feet for crank stakes |
| Support wheel with support load indicator |
| anti-skid system |
| 17" shiny black alloy wheel with summer tires |
| Tow bar cover |
| Payload upgrade |
|---|
| Maximum chassis weight 1.500 kg / 1.500 kg Chassis |
| Cabine exterior |
|---|
| Sliding window (kitchen) incl. blackout blind and insect screen |
| Preparation for air conditioning incl. roof reinforcement |
| Roof hood clear glass 700 x 500 mm incl. blackout blind and insect screen |
| Spare wheel holder in bottle holder |
| Service flap 1,000 x 420 mm front driver's side |
| Hinged bathroom window (frosted glass) incl. blackout blind and insect screen |
| Opening window bow 1,589 x 580 mm incl. blackout blind and insect screen |
| Roof air conditioning (cooling and heating) |
| Cabine interior |
|---|
| Insect screen door in superstructure door |
| 3-seater bunk bed (load capacity 80 kg), each with its own window |
| Premium mattress 130mm incl. slatted base frame |
| Shower curtain |
| Wooden shower inlay |
| Pad Sassino Silver Selection |
| Water supply |
|---|
| Freshwater tank with filler pipe, 44 ltr. |
| Holding tank 25 ltr. with wheels |
| Therme for hot water supply 5 l (hot water mixer tap included) |
| Level sensor for fresh and waste water tank |
| Multimedia |
|---|
| TV preparation (1x12V socket, 2x antenna cable SAT/TV) |
| LMC Home |
| Gas/Electricity supply |
|---|
| Gas detector |
| Additional lightning (light rail incl. Spots) |
| Battery 95 AH AGM |
| 12 V main switch |
| Gas level sensor |
| 2x USB socket for power rail |
| Exterior socket 230 V / 12 V / TV |
| Heating |
|---|
| Electrical floor heating 230 V |
| Electric auxiliary heater 2 kW |
| Air circulation system for gas heating |
| Package elements |
|---|
| Gas level sensor |
| Wooden shower inlay |
| Shower basin |
| Freshwater tank with filler pipe, 44 ltr. |
| Level sensor for fresh and waste water tank |
| LMC Home |
| Shower curtain |
| Shower fitting |
| Tire pressure sensors |
| Support wheel with support load sensor |
| 12 V main switch |
| Voltage indicator for battery |
| Accu |
| Battery 95 AH AGM |
| Air circulation system for gas heating |
| 12 V ventilation system |
| Packages |
|---|
| Shower package |
| Sassino package |
| LMC Home sensor package |
| Autarchy package hot-air heating |
| Andere Außenausstattungen |
|---|
| Preparation for air conditioning incl. roof reinforcement |
| Spare wheel holder in bottle holder |
| Roof air conditioning (cooling and heating) |
| Service flap 1,000 x 420 mm front driver's side |
| Elektro- und Gasversorgung |
|---|
| Exterior socket 230 V / 12 V / TV |
| Voltage indicator for battery |
| Accu |
| Battery 95 AH AGM |
| Gas detector |
| 2x USB socket for power rail |
| Additional lightning (light rail incl. Spots) |
| 12 V main switch |
| Fahrzeugausstattung |
|---|
| Plate feet for crank stakes |
| Support wheel with support load indicator |
| Fenster & Türen |
|---|
| Roof hood clear glass 700 x 500 mm incl. blackout blind and insect screen |
| Opening window bow 1,589 x 580 mm incl. blackout blind and insect screen |
| Hinged bathroom window (frosted glass) incl. blackout blind and insect screen |
| Sliding window (kitchen) incl. blackout blind and insect screen |
| Heating |
|---|
| Electrical floor heating 230 V |
| Therme for hot water supply 5 l (hot water mixer tap included) |
| Electric auxiliary heater 2 kW |
| 12 V ventilation system |
| Air circulation system for gas heating |
| Weitere Innenausstattungen |
|---|
| Premium mattress 130mm incl. slatted base frame |
| 3-seater bunk bed (load capacity 80 kg), each with its own window |
| Insect screen door in superstructure door |
| Multimedia |
|---|
| TV preparation (1x12V socket, 2x antenna cable SAT/TV) |
| Wasserversorgung |
|---|
| Shower basin |
| Shower curtain |
| Shower fitting |
| Holding tank 25 ltr. with wheels |
| Freshwater tank with filler pipe, 44 ltr. |
| Payload upgrade |
|---|
| Maximum chassis weight 1.500 kg / 1.500 kg Chassis |
a) All prices are recommended retail prices in EUR, based on the German retail prices. Prices in other countries may differ due to currency, country specific VAT, country specification, transportation charges or import duties. Your local dealer informes you about the applicable prices, taxes and duties for your country.
*The technically permissible total mass is a value specified by the manufacturer, which the vehicle must not exceed, even when loaded. It therefore has an influence on the permissible number of seats, options for selecting special equipment and remaining payload options.
Detailed information on weights and vehicle configuration can be found in our technical data, legal information section and in the configurator.

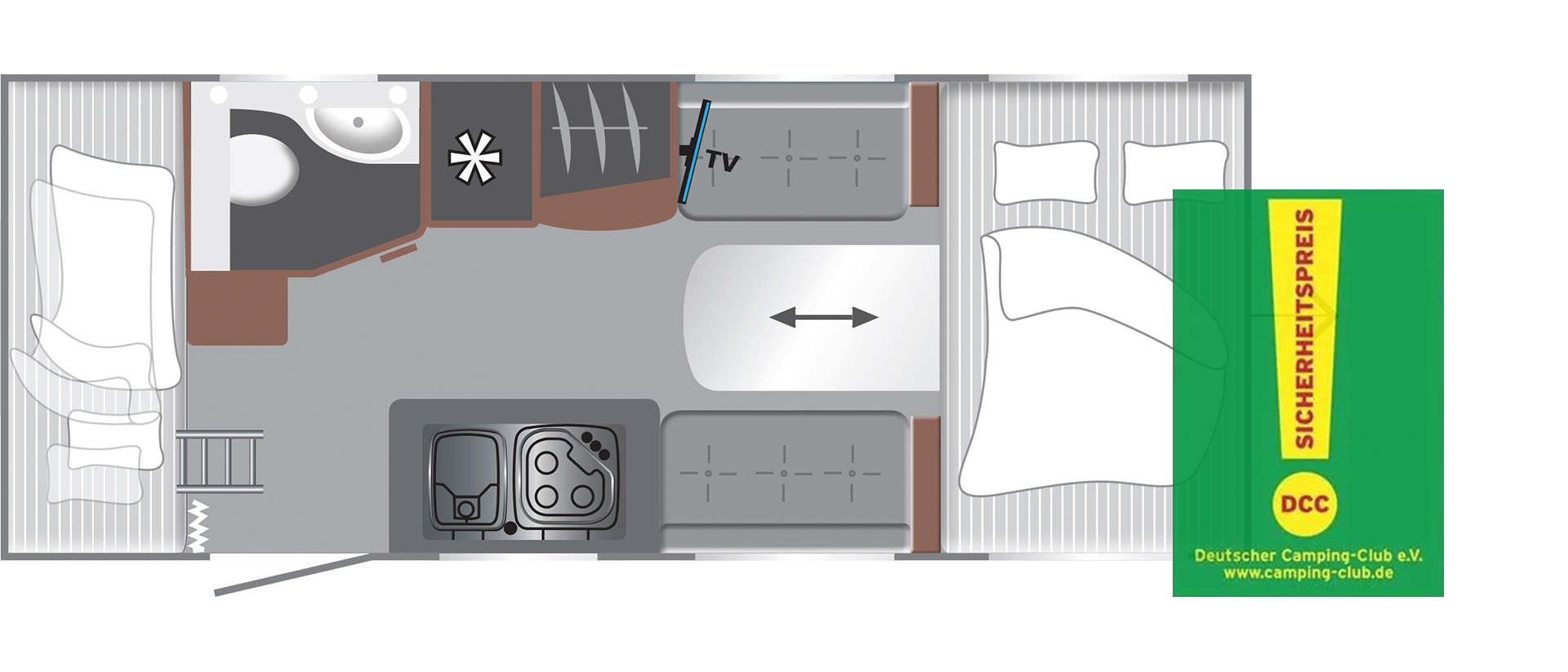

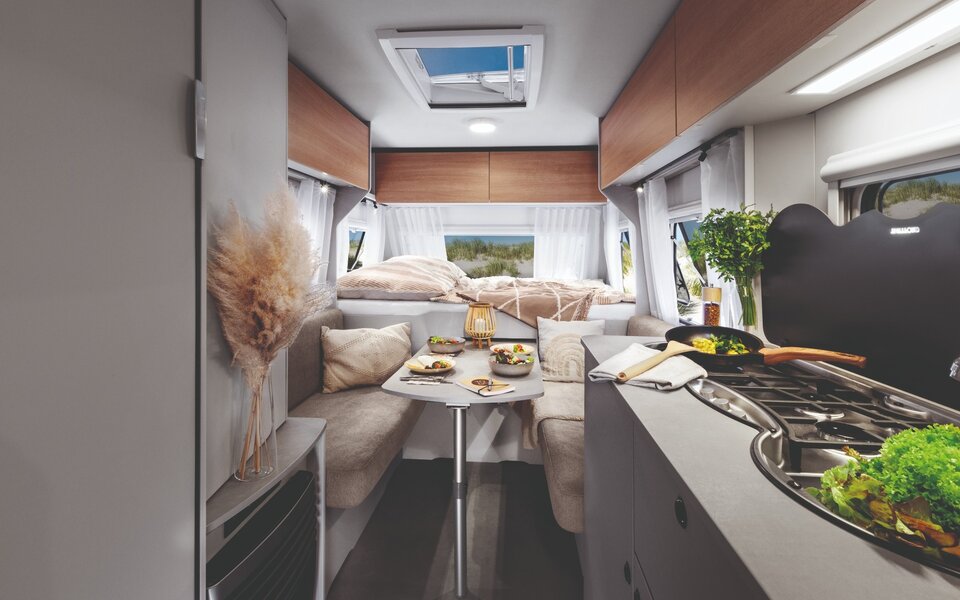

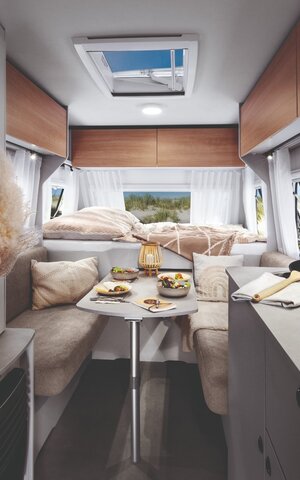

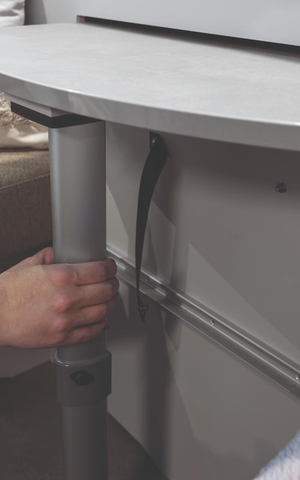

The extendable table in the Sassino 470 K ensures efficient use of space. Simply slide the table into the bed box for sleeping.
Every Sassino comes standard with compressor refrigerators. Other highlights include a three-burner stove with integrated sink and ample storage space for dishes and utensils.
Charging electrical devices is easy thanks to ‘Dimmy’, the USB socket integrated in the dimmable bunk bed light.

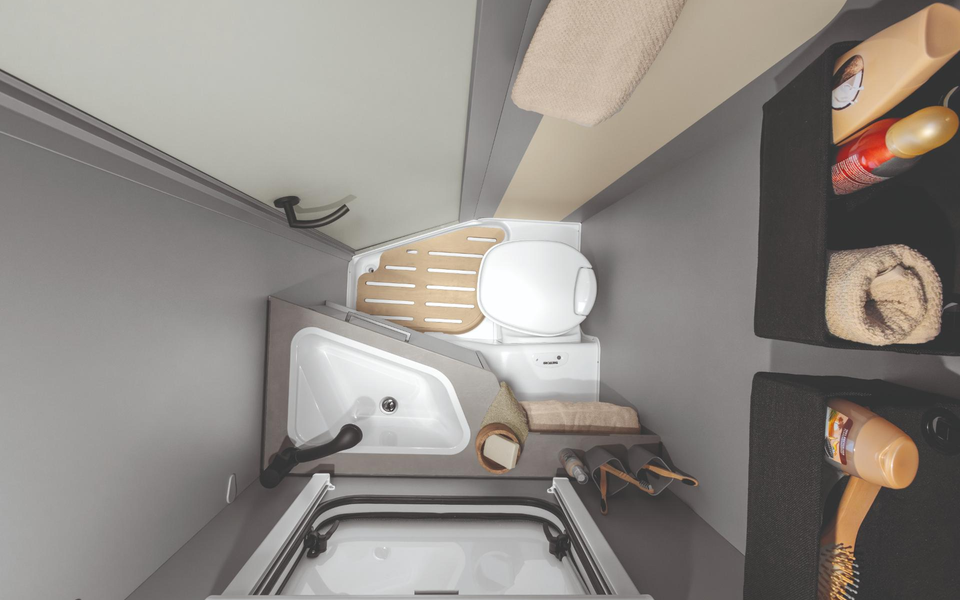

For those who prefer to shower in the washroom, the removable and washable fabric boxes in the Sassino are easy to take along.
€2,495.00
€590.00
a) All prices are recommended retail prices in EUR, based on the German retail prices. Prices in other countries may differ due to currency, country specific VAT, country specification, transportation charges or import duties. Your local dealer informes you about the applicable prices, taxes and duties for your country.

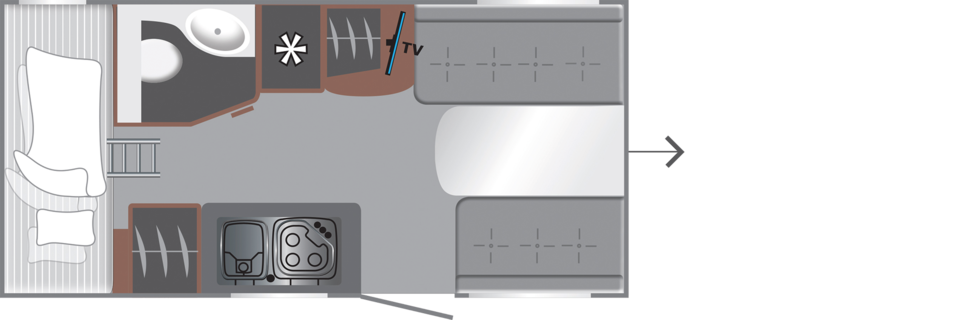

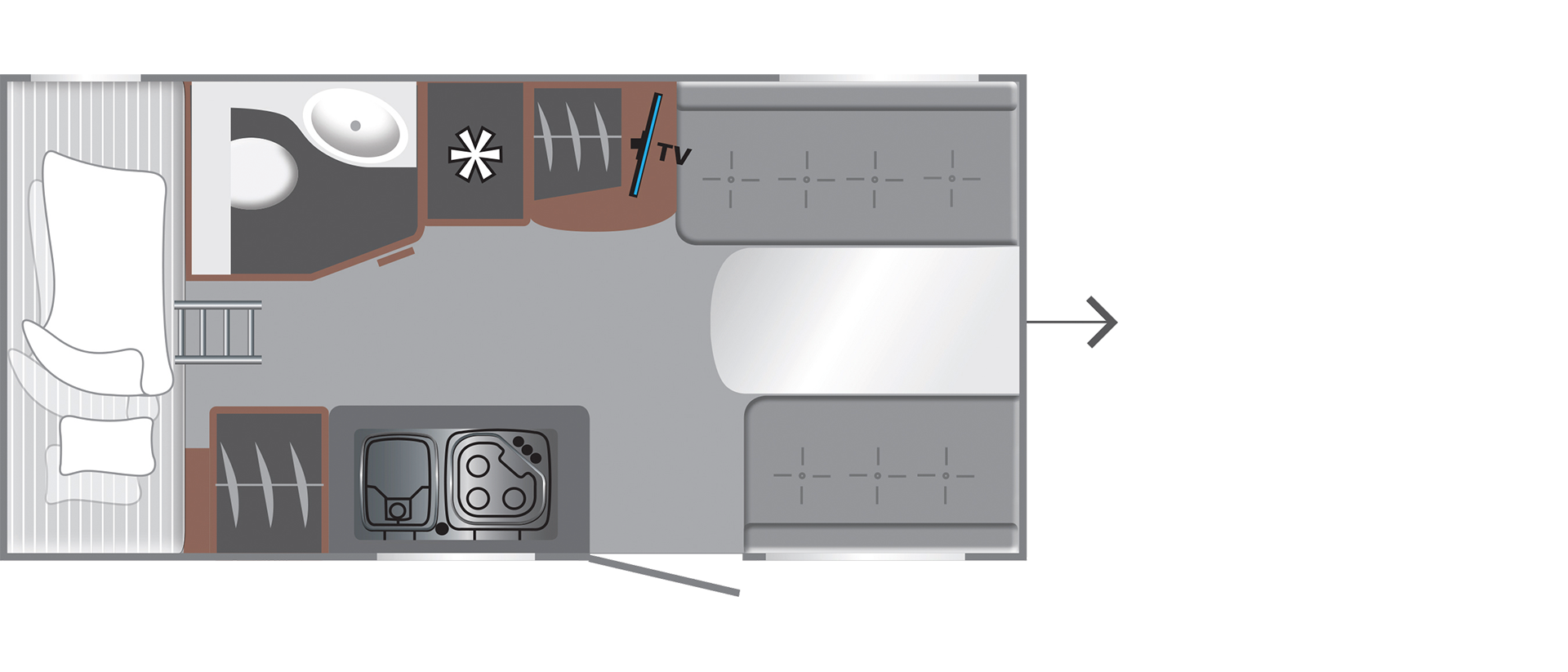

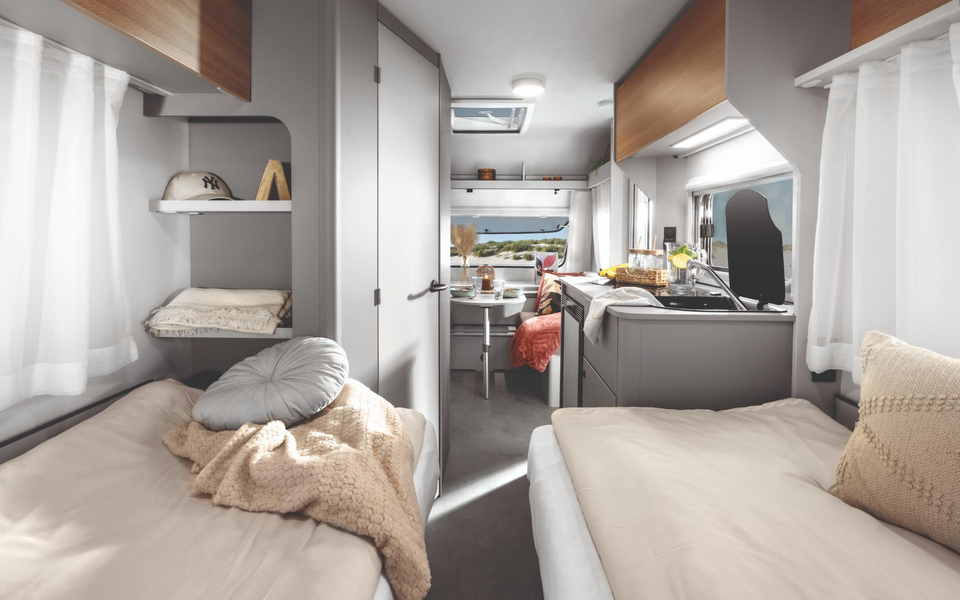

Family camping made easy: No worries with the Sassino 390 K and 470 K family models. Here, children sleep safely and snugly in the rear bunk beds equipped with safety rails.
Easy caravan decoration: The subtle colors and elegant archway elements give the Sassino a timeless, modern aesthetic that pairs perfectly with any color.
Experience unique moments at dinner while camping in the dunes - for example on a trip to the sea.
The e-car-friendly Sassino series offers as a slim caravan with plenty of storage space for a comfortable camping experience.
