LMC Tourer / Tourer Lift
Your journey. Your freedom.
You decide where to go.
The best part of the journey often happens in between – when you pause, step outside and simply enjoy the moment. The Tourer is a versatile motorhome with generous payload, space and comfort – made for families with big plans.
a) All prices are recommended retail prices in EUR, based on the German retail prices. Prices in other countries may differ due to currency, country specific VAT, country specification, transportation charges or import duties. Your local dealer informes you about the applicable prices, taxes and duties for your country.
*The technically permissible total mass is a value specified by the manufacturer, which the vehicle must not exceed, even when loaded. It therefore has an influence on the permissible number of seats, options for selecting special equipment and remaining payload options.
Detailed information on weights and vehicle configuration can be found in our technical data, legal information section and in the configurator.
When buying a motorhome, camper van or urban vehicle (hereafter: motorhome), it is particularly important to choose the right layout and an appealing design. In addition, weight also plays an essential role. Family, friends, optional equipment, accessories and baggage – space must be available for all of these. At the same time, there are legal and technical limits to the configuration and load. Every motorhome is designed for a certain weight, which may not be exceeded during driving. For motorhome buyers, this raises the question: How should I configure my vehicle to accommodate passengers, baggage and accessories according to my needs without the vehicle exceeding this maximum weight? In order to make this decision easier for you, we provide you below with a few tips that are particularly important when selecting your vehicle from our portfolio:
| Description | Value |
|---|---|
| Pricea) | €74,990.00 |
| Total length | 699 |
| Total width | 232 |
| Interior roof height max. | 198 |
| Total height | 276 |
| Wheelbase | 4035 |
| Licensed seat no. (driver included)* | 4 |
| Weight in drivable condition (with standard equipment)* | 2895 (2750 - 3040)* |
| Manufacturer-specified dimensions for optional equipment* | 251 |
| Maximum permissible total weight* | 3500 |
| Floor, wall, roof thickness | 40 / 30 / 30 |
| Berths standard / max. | 3 / 5 (○) |
| Front | 213 x 110 - 55 |
| Rear | 185 x 88 / 200 x 88 |
| Pop-up-roof | 234 x 133 (○) |
| Chassis & Cockpit |
|---|
| Driver airbag |
| Passenger airbag |
| Fuel tank 90 l diesel |
| Ad Blue tank 19 ltr. |
| Manual air conditioning (cab) |
| Central locking – vehicle and habitation door can be operated centrally |
| Lane widening – improved driving stability and maximum interior comfort |
| Height-adjustable driver and passenger seat |
| Comfort steeble cap covers |
| Rotable driver and passenger seat |
| Breakdown kit |
| Cup holder |
| Lane keeping warning |
| ASR + ESP incl. Hillholder |
| Traction Control |
| Cruise control |
| Headlights with black frame |
| Multifunction steering wheel with control element |
| Electric and heated exterior mirrors |
| Engine variation |
|---|
| 103kW (140 bhp) switch - EURO 6E |
| Cabine exterior |
|---|
| Body door 58 cm with waste bin, window, blackout blind and central locking incl. low coupe entrance |
| Lowered chassis extension for increased payload of 250 kg |

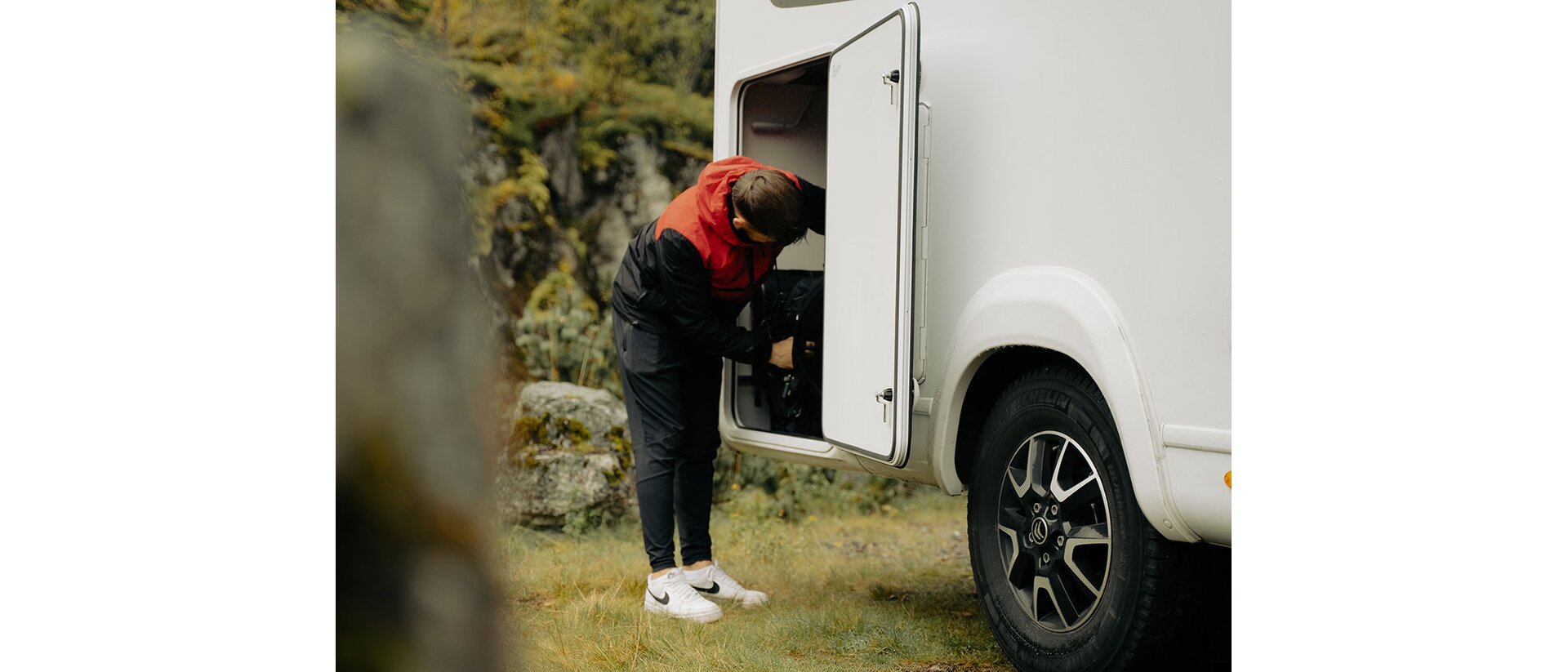

| Rear garage door, passenger side |
| Additional rear garage door driver‘s side |
| Roof hood clear glass 400 x 400 mm (kitchen, bedroom) incl. blackout blind and insect screen |
| Roof hood clear glass 400x400mm incl. blackout blind and insect screen in the bathroom |
| Cabine interior |
|---|
| Folding clothes rail in the toilet/shower room |
| Cold foam mattresses 100mm in fixed beds incl. slatted frames |
| Closet interior lighting |
| Headrests in middle seat group |
| Lashing rails with eyelets in rear garage |
| Furniture construction and ventilated upholstery and mattresses for optimum air circulation |
| Seating group platform with integrated storage compartment |
| Expandable table top |
| Wood decor Taupe |
| Center seating group can be converted into a bed with additional cushion |
| Bed conversion single to double bed |
| Pad Tourer Moon |

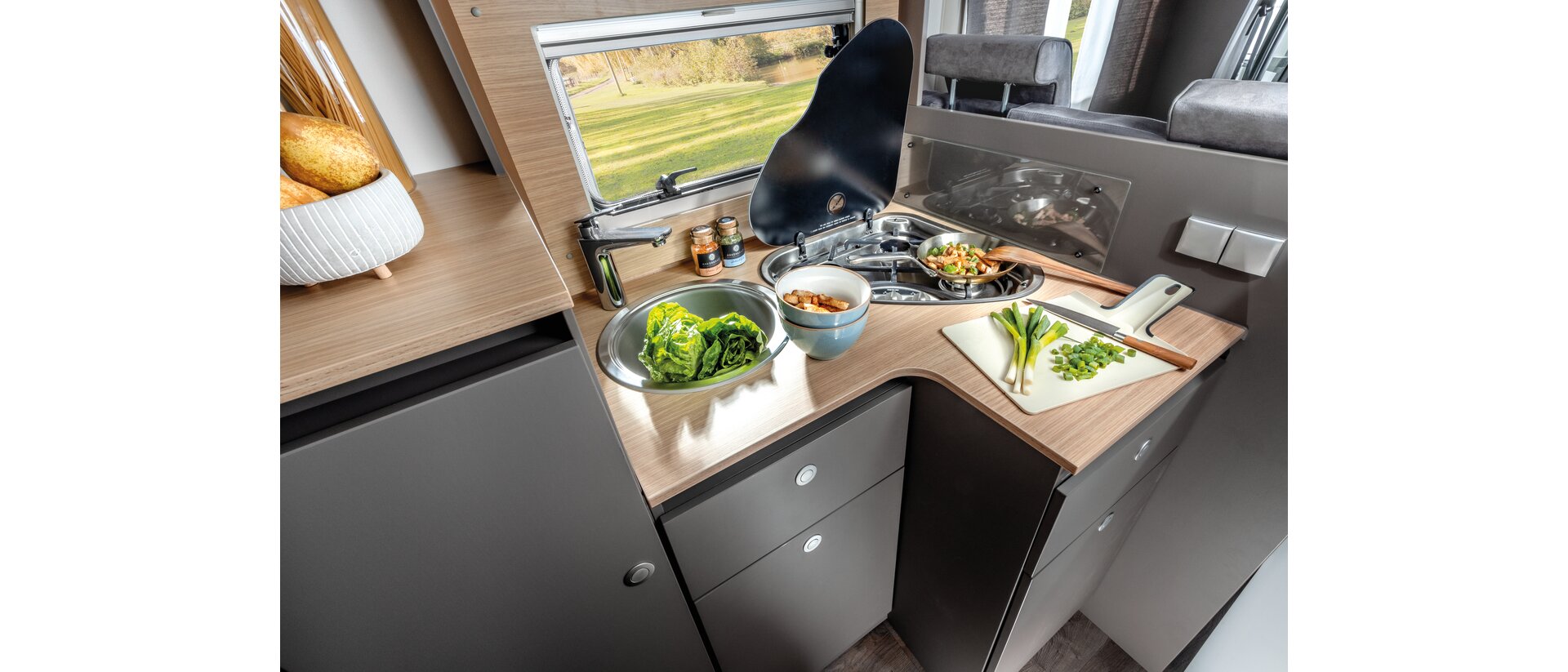

| Kitchen |
|---|
| Drawer with cutlery tray |
| Three burner stove with electric stroke ignition for each individual and glass cover |
| Compressor refrigerator 153 l with ice compartment |

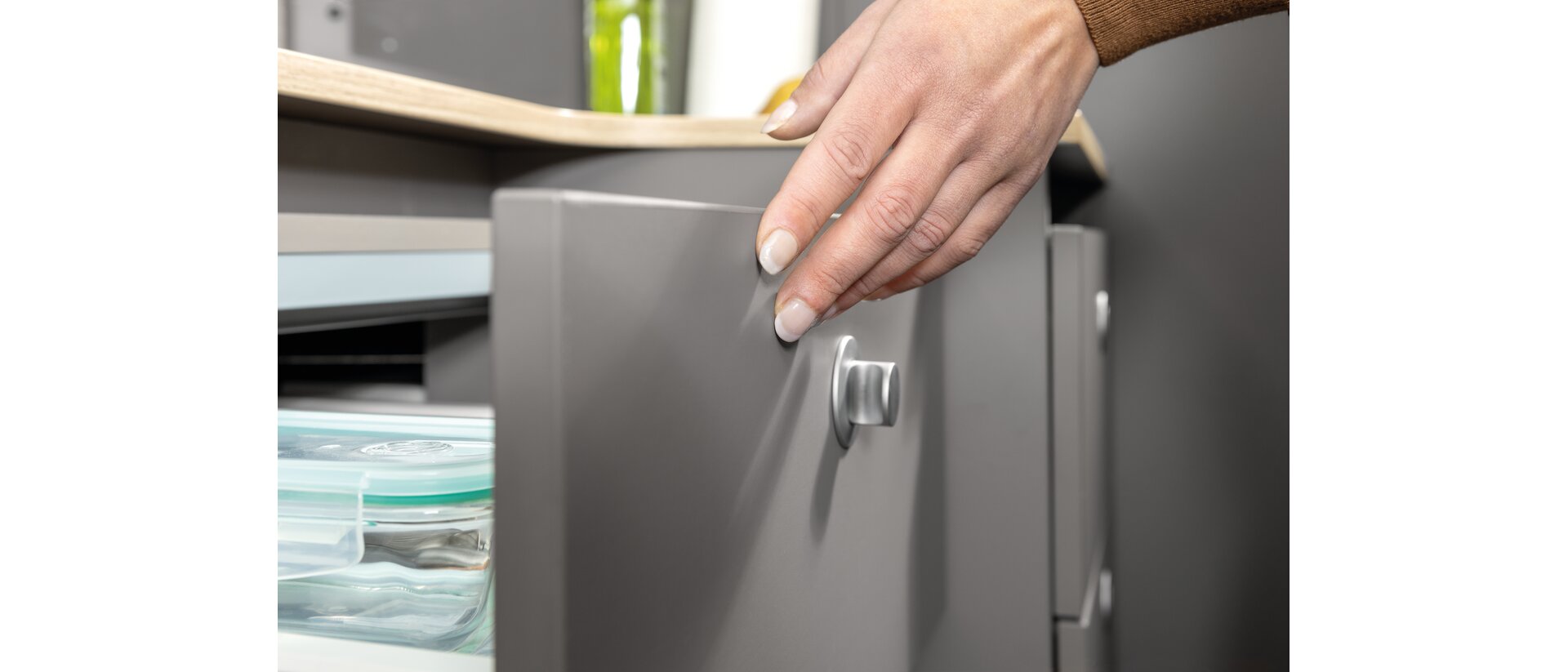

| Drawers with softclose |
| Sink with glass cover |
| Water supply |
|---|
| Fresh water tank insulated and heated |
| Cassette toilet |
| Warm water mixer tap |

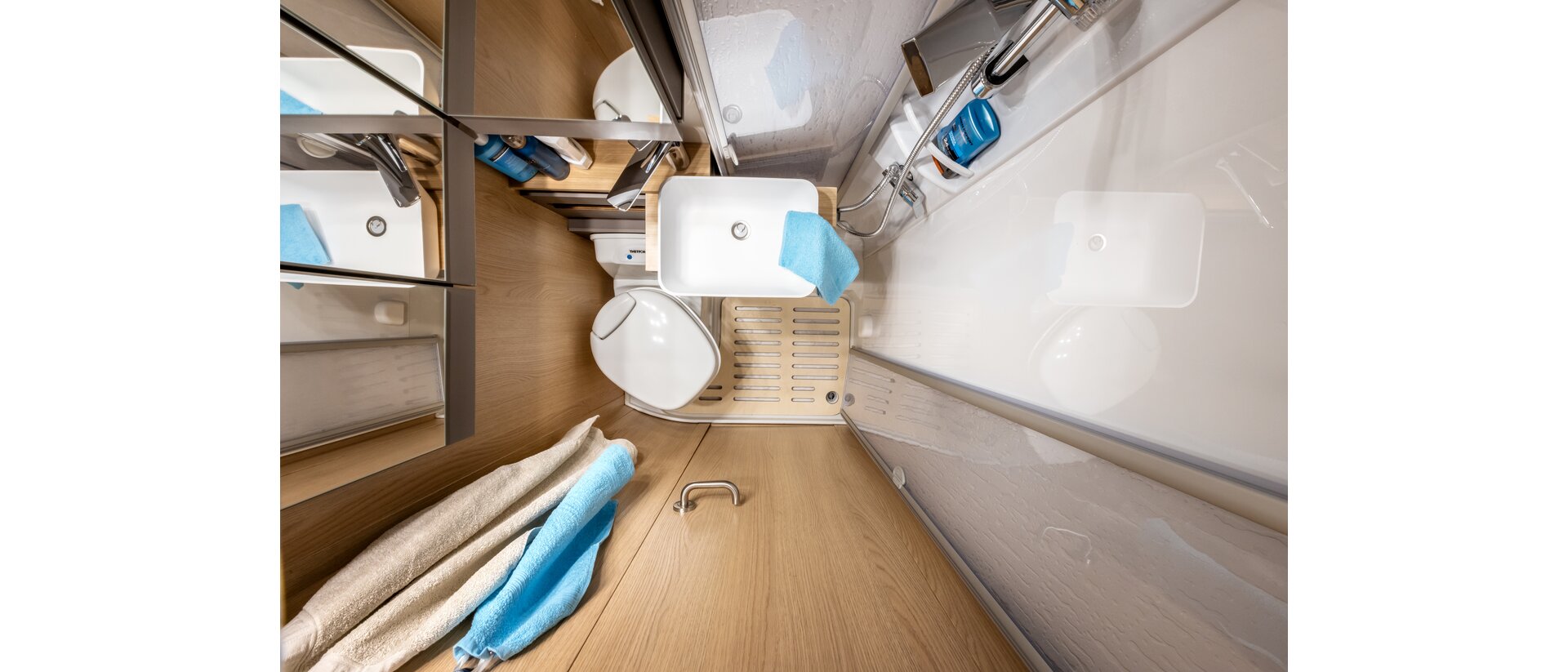

| Modern bathroom sink |
| Water tank 100 l with filler neck, waste water tank 90 l |
| High performance tandem submersible pump |
| Gas/Electricity supply |
|---|
| CEE external connection for 230 V with RCD and charger |
| Electric charger for leisure and vehicle battery 12 V / 18 A |
| High-performance, maintenance-free leisure battery (95 Ah AGM) |
| Power input sidewall |
| Outer door gas box |
| Multifunctional panel |
| LED reading spots – flexibly adjustable, with integrated USB charging function |
| LED interior lighting |
| Gas bottle box (for 2 x 11 kg) |
| Gas regulator 30 mbar with gas hose (with country-specific adapter) |
| Smoke alarm |
| 230V socket and lighting in the rear garage |
| Heating |
|---|
| Gas heater 6 kW circulating air with 10 l boiler and manual control panel |
| Long Life Technologie |
|---|
| Underbody made of high-performance XPS foam and GRP |
| Roof and front / rear section in GRP |
| 12-years-tightness-warranty |
| GRP side walls |
| Chassis & Cockpit |
|---|
| Fiat Chassis |
| 10'' display including radio and navigation system + Android Auto or Apple CarPlay + cab automatic climate control |
| Fully digital 7" instrument cluster – digital driver display (speedometer) behind the steering wheel |
| Full LED headlights |
| Cruise control system, adaptive |
| Rain and light sensor |
| Electrical confirmed parking brake |
| Seat heating driver side and passenger side |
| Electric folding exterior mirrors |
| Preparation for Ford towbar |
| Carpet cab |
| Engine variation |
|---|
| 103 kW (140 bhp) automatic - EURO 6E |
| 132kW (180 bhp) automatic - EURO 6E |
| 132kW (180 bhp) Maxi Chassis (4t) Automatic - EURO 6E |
| Payload upgrade |
|---|
| Increase in max. permitted mass 3,65 t / 4,25 t (depending on the chassis) |
| Weight increase 4,4 t (only possible with maxi chassis) |
| Cabine exterior |
|---|
| Framed window incl. blackout blind and insect screen |
| Roof air conditioning (cooling and heating) |
| Clear glass roof hood 700x500mm incl. blackout blind and insect screen above the bed |
| Clear glass roof hood 700x500mm incl. blackout blind and insect screen above the seating area |
| Preparation for bicycle holder |
| Crank- / fold stakes rear |
| Pop-up roof (heated) |
| Pop-up roof – interior insulation |
| Cabine interior |
|---|
| Isofix for 2 seats |
| Premium mattress 130mm incl. slatted base frame |
| Storage system inside rear garage |
| Carpet for living room |
| Pad Tourer Mercury |
| Wooden shower inlay |
| Kitchen |
|---|
| Folding box in kitchen unit |
| Oven in kitchen unit (runs on gas) |
| Water supply |
|---|
| Waste water tank insulated and automatically heated |
| Multimedia |
|---|
| Smart TV 32“ |
| SAT system Telesat automatic 65 cm |
| TV-holder for flat screen (to 32") |
| Gas/Electricity supply |
|---|
| Additional battery 95 Ah AGM |
| Lithium habitation battery 150Ah (instead of standard battery) |
| Additional lithium habitation battery 150Ah |
| Gas extraction coupling in the gas box |
| Ice-ex with monitor (only in combination with DuoControl |
| DuoControl with Crash Sensor |
| Heating |
|---|
| 6 kW gas heater with manual control panel and 1.8 kW electric heating cartridge |
| Digital control panel for heating |
| Diesel heater 6 kW with 10 l boiler, circulating air, digital control panel and 1.8 kW electric heating cartridge |
| Hot water underfloor heating (in combination with convection heating) |
| Packages |
|---|
| Standard equipment |
| Winter package circulating air |
| SAT- Package |
| Standard equipment |
|---|
| Emergency brake assist with pedestrian detection |
| Driver fatigue detection |
| Bumpers painted in body color |
| Cab darkening (pleated blinds) |
| Intelligent speed assistant |
| Traffic sign recognition |
| Dashboard with applications (Techno Trim) |
| Glossy black skid plate – robust underbody protection with an elegant design |
| Steering wheel and gear shift in leather model |
| 16" aluminum rims bicolor with all-weather tires |
| Roof hood clear glass 700 x 500 mm incl. blackout blind and insect screen above the seating area (above rear bed in lift models) |
| lane keeping warning |
| 7'' display incl. radio and Android Auto or Apple Car Play |
| Solar Preparation |
| Lightning spots in floor area |
| Preparation SAT , climate, solar including roof enhancement |
| Indirect lightning above and under wall-cupboards |
| Indirect kitchen lighting |
| LED-struts in sleeping area |
| Matt black awning incl. LED strips |
| Panorama window incl. blackout blind and insect screen above cab |
| TV place preparation (2x 12 V, 1x 230 V socket outlet 1x Cinch AV) |
| Insect screen door |
a) All prices are recommended retail prices in EUR, based on the German retail prices. Prices in other countries may differ due to currency, country specific VAT, country specification, transportation charges or import duties. Your local dealer informes you about the applicable prices, taxes and duties for your country.
*The technically permissible total mass is a value specified by the manufacturer, which the vehicle must not exceed, even when loaded. It therefore has an influence on the permissible number of seats, options for selecting special equipment and remaining payload options.
Detailed information on weights and vehicle configuration can be found in our technical data, legal information section and in the configurator.
When buying a motorhome, camper van or urban vehicle (hereafter: motorhome), it is particularly important to choose the right layout and an appealing design. In addition, weight also plays an essential role. Family, friends, optional equipment, accessories and baggage – space must be available for all of these. At the same time, there are legal and technical limits to the configuration and load. Every motorhome is designed for a certain weight, which may not be exceeded during driving. For motorhome buyers, this raises the question: How should I configure my vehicle to accommodate passengers, baggage and accessories according to my needs without the vehicle exceeding this maximum weight? In order to make this decision easier for you, we provide you below with a few tips that are particularly important when selecting your vehicle from our portfolio:

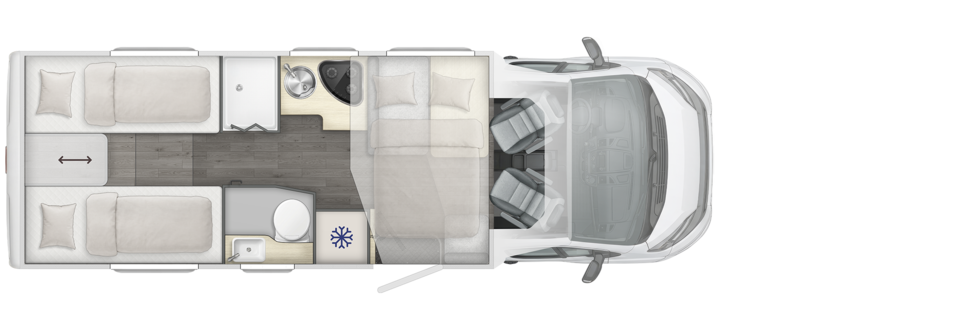

| Description | Value |
|---|---|
| Pricea) | €76,490.00 |
| Total length | 699 |
| Total width | 232 |
| Interior roof height max. | 198 |
| Total height | 280 |
| Wheelbase | 3800 |
| Licensed seat no. (driver included)* | 4 |
| Weight in drivable condition (with standard equipment)* | 2956 (2808 - 3104)* |
| Manufacturer-specified dimensions for optional equipment* | 202 |
| Maximum permissible total weight* | 3500 |
| Floor, wall, roof thickness | 40 / 30 / 30 |
| Berths standard / max. | 4 |
| Middle | 197 x 139 - 117 |
| Rear | 201 x 132 - 89 |
| Chassis & Cockpit |
|---|
| Driver airbag |
| Passenger airbag |
| Fuel tank 90 l diesel |
| Ad Blue tank 19 ltr. |
| Manual air conditioning (cab) |
| Central locking – vehicle and habitation door can be operated centrally |
| Lane widening – improved driving stability and maximum interior comfort |
| Height-adjustable driver and passenger seat |
| Comfort steeble cap covers |
| Rotable driver and passenger seat |
| Breakdown kit |
| Cup holder |
| Lane keeping warning |
| ASR + ESP incl. Hillholder |
| Traction Control |
| Cruise control |
| Headlights with black frame |
| Multifunction steering wheel with control element |
| Electric and heated exterior mirrors |
| Engine variation |
|---|
| 103kW (140 bhp) switch - EURO 6E |
| Cabine exterior |
|---|
| Body door 70 cm with waste bin, window, blackout blind and central locking incl. low coupe entrance |
| Rear garage door, passenger side |
| Roof hood clear glass 400 x 400 mm (kitchen, bedroom) incl. blackout blind and insect screen |
| Roof hood clear glass 400x400mm incl. blackout blind and insect screen in the bathroom |
| Cabine interior |
|---|
| Folding clothes rail in the toilet/shower room |
| Cold foam mattresses 100mm in fixed beds incl. slatted frames |
| Closet interior lighting |
| Headrests in middle seat group |
| Furniture construction and ventilated upholstery and mattresses for optimum air circulation |
| Seating group platform with integrated storage compartment |
| Expandable table top |
| Wood decor Taupe |

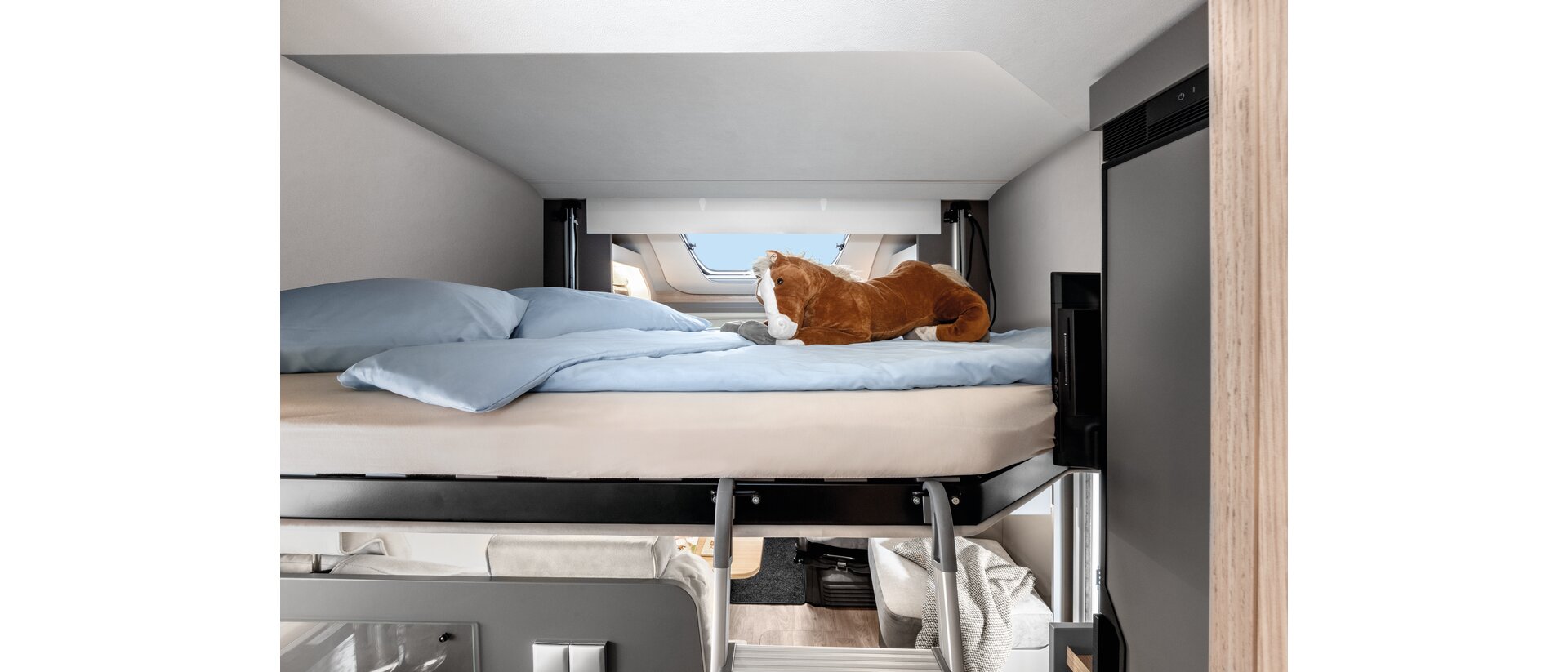

| Integrated lifting bed electrically movable with 80 mm cold foam mattress incl. slatted frame (load capacity 200 kg) |
| Pad Tourer Moon |
| Kitchen |
|---|
| Drawer with cutlery tray |
| Three burner stove with electric stroke ignition for each individual and glass cover |
| Compressor refrigerator 153 l with ice compartment |
| Drawers with softclose |
| Sink with glass cover |
| Water supply |
|---|
| Fresh water tank insulated and heated |
| Cassette toilet |
| Warm water mixer tap |
| Modern bathroom sink |
| Water tank 100 l with filler neck, waste water tank 90 l |
| High performance tandem submersible pump |
| Gas/Electricity supply |
|---|
| CEE external connection for 230 V with RCD and charger |
| Electric charger for leisure and vehicle battery 12 V / 18 A |
| High-performance, maintenance-free leisure battery (95 Ah AGM) |
| Power input sidewall |
| Outer door gas box |
| Multifunctional panel |
| LED reading spots – flexibly adjustable, with integrated USB charging function |
| LED interior lighting |
| Gas bottle box (for 2 x 11 kg) |
| Gas regulator 30 mbar with gas hose (with country-specific adapter) |
| Smoke alarm |
| Heating |
|---|
| Gas heater 6 kW circulating air with 10 l boiler and manual control panel |
| Long Life Technologie |
|---|
| Underbody made of high-performance XPS foam and GRP |
| Roof and front / rear section in GRP |
| 12-years-tightness-warranty |
| GRP side walls |
| Chassis & Cockpit |
|---|
| Fiat Chassis |
| 10'' display including radio and navigation system + Android Auto or Apple CarPlay + cab automatic climate control |
| Fully digital 7" instrument cluster – digital driver display (speedometer) behind the steering wheel |
| Full LED headlights |
| Cruise control system, adaptive |
| Rain and light sensor |
| Electrical confirmed parking brake |
| Seat heating driver side and passenger side |
| Electric folding exterior mirrors |
| Preparation for Ford towbar |
| Carpet cab |
| Engine variation |
|---|
| 103 kW (140 bhp) automatic - EURO 6E |
| 132kW (180 bhp) automatic - EURO 6E |
| Payload upgrade |
|---|
| Increase in max. permitted mass 3,65 t / 4,25 t (depending on the chassis) |
| Cabine exterior |
|---|
| Hinged bathroom window (frosted glass) incl. blackout blind and insect screen |
| Framed window incl. blackout blind and insect screen |
| Roof air conditioning (cooling and heating) |
| Clear glass roof hood 700x500mm incl. blackout blind and insect screen above the bed |
| Preparation for bicycle holder |
| Crank- / fold stakes rear |
| Cabine interior |
|---|
| Isofix for 2 seats |
| Premium mattress 130mm incl. slatted base frame |
| Carpet for living room |
| Pad Tourer Mercury |
| Kitchen |
|---|
| Folding box in kitchen unit |
| Oven in kitchen unit (runs on gas) |
| Water supply |
|---|
| Waste water tank insulated and automatically heated |
| Multimedia |
|---|
| Smart TV 32“ |
| SAT system Telesat automatic 65 cm |
| TV-holder for flat screen (to 32") |
| Gas/Electricity supply |
|---|
| Additional battery 95 Ah AGM |
| Lithium habitation battery 150Ah (instead of standard battery) |
| Additional lithium habitation battery 150Ah |
| Gas extraction coupling in the gas box |
| Ice-ex with monitor (only in combination with DuoControl |
| DuoControl with Crash Sensor |
| Heating |
|---|
| 6 kW gas heater with manual control panel and 1.8 kW electric heating cartridge |
| Digital control panel for heating |
| Diesel heater 6 kW with 10 l boiler, circulating air, digital control panel and 1.8 kW electric heating cartridge |
| Hot water underfloor heating (in combination with convection heating) |
| Packages |
|---|
| Standard equipment |
| Winter package circulating air |
| SAT- Package |
| Standard equipment |
|---|
| Emergency brake assist with pedestrian detection |
| Driver fatigue detection |
| Bumpers painted in body color |
| 16" aluminum rims bicolor with all-weather tires |
| Dashboard with applications (Techno Trim) |
| Glossy black skid plate – robust underbody protection with an elegant design |
| Steering wheel and gear shift in leather model |
| Cab darkening (pleated blinds) |
| Traffic sign recognition |
| Roof hood clear glass 700 x 500 mm incl. blackout blind and insect screen above the seating area (above rear bed in lift models) |
| lane keeping warning |
| 7'' display incl. radio and Android Auto or Apple Car Play |
| Preparation SAT , climate, solar including roof enhancement |
| Solar Preparation |
| Indirect lightning above and under wall-cupboards |
| Lightning spots in floor area |
| Indirect kitchen lighting |
| LED-struts in sleeping area |
| Intelligent speed assistant |
| Panorama window incl. blackout blind and insect screen above cab |
| Matt black awning incl. LED strips |
| TV place preparation (2x 12 V, 1x 230 V socket outlet 1x Cinch AV) |
| Insect screen door |
a) All prices are recommended retail prices in EUR, based on the German retail prices. Prices in other countries may differ due to currency, country specific VAT, country specification, transportation charges or import duties. Your local dealer informes you about the applicable prices, taxes and duties for your country.
*The technically permissible total mass is a value specified by the manufacturer, which the vehicle must not exceed, even when loaded. It therefore has an influence on the permissible number of seats, options for selecting special equipment and remaining payload options.
Detailed information on weights and vehicle configuration can be found in our technical data, legal information section and in the configurator.
When buying a motorhome, camper van or urban vehicle (hereafter: motorhome), it is particularly important to choose the right layout and an appealing design. In addition, weight also plays an essential role. Family, friends, optional equipment, accessories and baggage – space must be available for all of these. At the same time, there are legal and technical limits to the configuration and load. Every motorhome is designed for a certain weight, which may not be exceeded during driving. For motorhome buyers, this raises the question: How should I configure my vehicle to accommodate passengers, baggage and accessories according to my needs without the vehicle exceeding this maximum weight? In order to make this decision easier for you, we provide you below with a few tips that are particularly important when selecting your vehicle from our portfolio:
| Description | Value |
|---|---|
| Pricea) | €76,990.00 |
| Total length | 699 |
| Total width | 232 |
| Interior roof height max. | 198 |
| Total height | 280 |
| Wheelbase | 4035 |
| Licensed seat no. (driver included)* | 4 |
| Weight in drivable condition (with standard equipment)* | 2979 (2830 - 3128)* |
| Manufacturer-specified dimensions for optional equipment* | 173 |
| Maximum permissible total weight* | 3500 |
| Floor, wall, roof thickness | 40 / 30 / 30 |
| Berths standard / max. | 3 |
| Middle | 197 x 88 |
| Rear | 185 x 88 / 200 x 88 |
| Chassis & Cockpit |
|---|
| Driver airbag |
| Passenger airbag |
| Fuel tank 90 l diesel |
| Ad Blue tank 19 ltr. |
| Manual air conditioning (cab) |
| Central locking – vehicle and habitation door can be operated centrally |
| Lane widening – improved driving stability and maximum interior comfort |
| Height-adjustable driver and passenger seat |
| Comfort steeble cap covers |
| Rotable driver and passenger seat |
| Breakdown kit |
| Cup holder |
| Lane keeping warning |
| ASR + ESP incl. Hillholder |
| Traction Control |
| Cruise control |
| Headlights with black frame |
| Multifunction steering wheel with control element |
| Electric and heated exterior mirrors |
| Engine variation |
|---|
| 103kW (140 bhp) switch - EURO 6E |
| Cabine exterior |
|---|
| Body door 58 cm with waste bin, window, blackout blind and central locking incl. low coupe entrance |
| Lowered chassis extension for increased payload of 250 kg |
| Rear garage door, passenger side |
| Additional rear garage door driver‘s side |
| Roof hood clear glass 400 x 400 mm (kitchen, bedroom) incl. blackout blind and insect screen |
| Roof hood clear glass 400x400mm incl. blackout blind and insect screen in the bathroom |
| Cabine interior |
|---|
| Folding clothes rail in the toilet/shower room |
| Cold foam mattresses 100mm in fixed beds incl. slatted frames |
| Closet interior lighting |
| Headrests in middle seat group |
| Lashing rails with eyelets in rear garage |
| Furniture construction and ventilated upholstery and mattresses for optimum air circulation |
| Seating group platform with integrated storage compartment |
| Expandable table top |
| Wood decor Taupe |
| Integrated lifting bed electrically movable with 80 mm cold foam mattress incl. slatted frame (load capacity 200 kg) |
| Bed conversion single to double bed |
| Pad Tourer Moon |
| Kitchen |
|---|
| Drawer with cutlery tray |
| Three burner stove with electric stroke ignition for each individual and glass cover |
| Compressor refrigerator 153 l with ice compartment |
| Drawers with softclose |
| Sink with glass cover |
| Water supply |
|---|
| Fresh water tank insulated and heated |
| Cassette toilet |
| Warm water mixer tap |
| Modern bathroom sink |
| Water tank 100 l with filler neck, waste water tank 90 l |
| High performance tandem submersible pump |
| Gas/Electricity supply |
|---|
| CEE external connection for 230 V with RCD and charger |
| Electric charger for leisure and vehicle battery 12 V / 18 A |
| High-performance, maintenance-free leisure battery (95 Ah AGM) |
| Power input sidewall |
| Outer door gas box |
| Multifunctional panel |
| LED reading spots – flexibly adjustable, with integrated USB charging function |
| LED interior lighting |
| Gas bottle box (for 2 x 11 kg) |
| Gas regulator 30 mbar with gas hose (with country-specific adapter) |
| Smoke alarm |
| 230V socket and lighting in the rear garage |
| Heating |
|---|
| Gas heater 6 kW circulating air with 10 l boiler and manual control panel |
| Long Life Technologie |
|---|
| Underbody made of high-performance XPS foam and GRP |
| Roof and front / rear section in GRP |
| 12-years-tightness-warranty |
| GRP side walls |
| Chassis & Cockpit |
|---|
| Fiat Chassis |
| 10'' display including radio and navigation system + Android Auto or Apple CarPlay + cab automatic climate control |
| Fully digital 7" instrument cluster – digital driver display (speedometer) behind the steering wheel |
| Full LED headlights |
| Cruise control system, adaptive |
| Rain and light sensor |
| Electrical confirmed parking brake |
| Seat heating driver side and passenger side |
| Electric folding exterior mirrors |
| Preparation for Ford towbar |
| Carpet cab |
| Engine variation |
|---|
| 103 kW (140 bhp) automatic - EURO 6E |
| 132kW (180 bhp) automatic - EURO 6E |
| 132kW (180 bhp) Maxi Chassis (4t) Automatic - EURO 6E |
| Payload upgrade |
|---|
| Increase in max. permitted mass 3,65 t / 4,25 t (depending on the chassis) |
| Weight increase 4,4 t (only possible with maxi chassis) |
| Cabine exterior |
|---|
| Framed window incl. blackout blind and insect screen |
| Roof air conditioning (cooling and heating) |
| Clear glass roof hood 700x500mm incl. blackout blind and insect screen above the bed |
| Preparation for bicycle holder |
| Crank- / fold stakes rear |
| Cabine interior |
|---|
| Isofix for 2 seats |
| Premium mattress 130mm incl. slatted base frame |
| Storage system inside rear garage |
| Carpet for living room |
| Pad Tourer Mercury |
| Wooden shower inlay |
| Kitchen |
|---|
| Folding box in kitchen unit |
| Oven in kitchen unit (runs on gas) |
| Water supply |
|---|
| Waste water tank insulated and automatically heated |
| Multimedia |
|---|
| Smart TV 32“ |
| SAT system Telesat automatic 65 cm |
| TV-holder for flat screen (to 32") |
| Gas/Electricity supply |
|---|
| Additional battery 95 Ah AGM |
| Lithium habitation battery 150Ah (instead of standard battery) |
| Additional lithium habitation battery 150Ah |
| Gas extraction coupling in the gas box |
| Ice-ex with monitor (only in combination with DuoControl |
| DuoControl with Crash Sensor |
| Heating |
|---|
| 6 kW gas heater with manual control panel and 1.8 kW electric heating cartridge |
| Digital control panel for heating |
| Diesel heater 6 kW with 10 l boiler, circulating air, digital control panel and 1.8 kW electric heating cartridge |
| Hot water underfloor heating (in combination with convection heating) |
| Packages |
|---|
| Standard equipment |
| Winter package circulating air |
| SAT- Package |
| Standard equipment |
|---|
| Emergency brake assist with pedestrian detection |
| Driver fatigue detection |
| Bumpers painted in body color |
| Cab darkening (pleated blinds) |
| Glossy black skid plate – robust underbody protection with an elegant design |
| Traffic sign recognition |
| Dashboard with applications (Techno Trim) |
| Steering wheel and gear shift in leather model |
| 16" aluminum rims bicolor with all-weather tires |
| 7'' display incl. radio and Android Auto or Apple Car Play |
| Roof hood clear glass 700 x 500 mm incl. blackout blind and insect screen above the seating area (above rear bed in lift models) |
| lane keeping warning |
| Intelligent speed assistant |
| Matt black awning incl. LED strips |
| Preparation SAT , climate, solar including roof enhancement |
| Solar Preparation |
| Indirect lightning above and under wall-cupboards |
| Lightning spots in floor area |
| Indirect kitchen lighting |
| LED-struts in sleeping area |
| Panorama window incl. blackout blind and insect screen above cab |
| TV place preparation (2x 12 V, 1x 230 V socket outlet 1x Cinch AV) |
| Insect screen door |
a) All prices are recommended retail prices in EUR, based on the German retail prices. Prices in other countries may differ due to currency, country specific VAT, country specification, transportation charges or import duties. Your local dealer informes you about the applicable prices, taxes and duties for your country.
*The technically permissible total mass is a value specified by the manufacturer, which the vehicle must not exceed, even when loaded. It therefore has an influence on the permissible number of seats, options for selecting special equipment and remaining payload options.
Detailed information on weights and vehicle configuration can be found in our technical data, legal information section and in the configurator.
When buying a motorhome, camper van or urban vehicle (hereafter: motorhome), it is particularly important to choose the right layout and an appealing design. In addition, weight also plays an essential role. Family, friends, optional equipment, accessories and baggage – space must be available for all of these. At the same time, there are legal and technical limits to the configuration and load. Every motorhome is designed for a certain weight, which may not be exceeded during driving. For motorhome buyers, this raises the question: How should I configure my vehicle to accommodate passengers, baggage and accessories according to my needs without the vehicle exceeding this maximum weight? In order to make this decision easier for you, we provide you below with a few tips that are particularly important when selecting your vehicle from our portfolio:
| Description | Value |
|---|---|
| Pricea) | €77,990.00 |
| Total length | 738 |
| Total width | 232 |
| Interior roof height max. | 198 |
| Total height | 280 |
| Wheelbase | 4035 |
| Licensed seat no. (driver included)* | 4 |
| Weight in drivable condition (with standard equipment)* | 3057 (2904 - 3210)* |
| Manufacturer-specified dimensions for optional equipment* | 104 |
| Maximum permissible total weight* | 3500 |
| Floor, wall, roof thickness | 40 / 30 / 30 |
| Berths standard / max. | 4 |
| Middle | 197 x 139 - 117 |
| Rear | 186 x 140 |
| Chassis & Cockpit |
|---|
| Driver airbag |
| Passenger airbag |
| Fuel tank 90 l diesel |
| Ad Blue tank 19 ltr. |
| Manual air conditioning (cab) |
| Central locking – vehicle and habitation door can be operated centrally |
| Lane widening – improved driving stability and maximum interior comfort |
| Height-adjustable driver and passenger seat |
| Comfort steeble cap covers |
| Rotable driver and passenger seat |
| Breakdown kit |
| Cup holder |
| Lane keeping warning |
| ASR + ESP incl. Hillholder |
| Traction Control |
| Cruise control |
| Headlights with black frame |
| Multifunction steering wheel with control element |
| Electric and heated exterior mirrors |
| Engine variation |
|---|
| 103kW (140 bhp) switch - EURO 6E |
| Cabine exterior |
|---|
| Body door 70 cm with waste bin, window, blackout blind and central locking incl. low coupe entrance |
| Lowered chassis extension for increased payload of 250 kg |
| Rear garage door, passenger side |
| Additional rear garage door driver‘s side |
| Panoramic window (queen-size bed) on driver and passenger side incl. blackout blind and insect screen |
| Roof hood clear glass 400 x 400 mm (kitchen, bedroom) incl. blackout blind and insect screen |
| Roof hood clear glass 400x400mm incl. blackout blind and insect screen in the bathroom |
| Cabine interior |
|---|
| Folding clothes rail in the toilet/shower room |
| Cold foam mattresses 100mm in fixed beds incl. slatted frames |
| Closet interior lighting |
| Headrests in middle seat group |
| Furniture construction and ventilated upholstery and mattresses for optimum air circulation |
| Seating group platform with integrated storage compartment |
| Expandable table top |
| Wood decor Taupe |
| Integrated lifting bed electrically movable with 80 mm cold foam mattress incl. slatted frame (load capacity 200 kg) |
| Pad Tourer Moon |
| Kitchen |
|---|
| Drawer with cutlery tray |
| Three burner stove with electric stroke ignition for each individual and glass cover |
| Compressor refrigerator 153 l with ice compartment |
| Drawers with softclose |
| Sink with glass cover |
| Water supply |
|---|
| Fresh water tank insulated and heated |
| Cassette toilet |
| Warm water mixer tap |
| Modern bathroom sink |
| Water tank 100 l with filler neck, waste water tank 90 l |
| High performance tandem submersible pump |
| Gas/Electricity supply |
|---|
| CEE external connection for 230 V with RCD and charger |
| Electric charger for leisure and vehicle battery 12 V / 18 A |
| High-performance, maintenance-free leisure battery (95 Ah AGM) |
| Power input sidewall |
| Outer door gas box |
| Multifunctional panel |
| LED reading spots – flexibly adjustable, with integrated USB charging function |
| LED interior lighting |
| Gas bottle box (for 2 x 11 kg) |
| Gas regulator 30 mbar with gas hose (with country-specific adapter) |
| Smoke alarm |
| Heating |
|---|
| Gas heater 6 kW circulating air with 10 l boiler and manual control panel |
| Long Life Technologie |
|---|
| Underbody made of high-performance XPS foam and GRP |
| Roof and front / rear section in GRP |
| 12-years-tightness-warranty |
| GRP side walls |
| Chassis & Cockpit |
|---|
| Fiat Chassis |
| 10'' display including radio and navigation system + Android Auto or Apple CarPlay + cab automatic climate control |
| Fully digital 7" instrument cluster – digital driver display (speedometer) behind the steering wheel |
| Full LED headlights |
| Cruise control system, adaptive |
| Rain and light sensor |
| Electrical confirmed parking brake |
| Seat heating driver side and passenger side |
| Electric folding exterior mirrors |
| Preparation for Ford towbar |
| Carpet cab |
| Engine variation |
|---|
| 103 kW (140 bhp) automatic - EURO 6E |
| 132kW (180 bhp) automatic - EURO 6E |
| 132kW (180 bhp) Maxi Chassis (4t) Automatic - EURO 6E |
| Payload upgrade |
|---|
| Increase in max. permitted mass 3,65 t / 4,25 t (depending on the chassis) |
| Weight increase 4,4 t (only possible with maxi chassis) |
| Cabine exterior |
|---|
| Framed window incl. blackout blind and insect screen |
| Roof air conditioning (cooling and heating) |
| Clear glass roof hood 700x500mm incl. blackout blind and insect screen above the bed |
| Preparation for bicycle holder |
| Crank- / fold stakes rear |
| Cabine interior |
|---|
| Isofix for 2 seats |
| Premium mattress 130mm incl. slatted base frame |
| Carpet for living room |
| Pad Tourer Mercury |
| Kitchen |
|---|
| Oven in kitchen unit (runs on gas) |
| Water supply |
|---|
| Waste water tank insulated and automatically heated |
| Multimedia |
|---|
| Smart TV 32“ |
| SAT system Telesat automatic 65 cm |
| TV-holder for flat screen (to 32") |
| Gas/Electricity supply |
|---|
| Additional battery 95 Ah AGM |
| Lithium habitation battery 150Ah (instead of standard battery) |
| Additional lithium habitation battery 150Ah |
| Gas extraction coupling in the gas box |
| Ice-ex with monitor (only in combination with DuoControl |
| DuoControl with Crash Sensor |
| Heating |
|---|
| 6 kW gas heater with manual control panel and 1.8 kW electric heating cartridge |
| Digital control panel for heating |
| Diesel heater 6 kW with 10 l boiler, circulating air, digital control panel and 1.8 kW electric heating cartridge |
| Hot water underfloor heating (in combination with convection heating) |
| Packages |
|---|
| Standard equipment |
| Winter package circulating air |
| SAT- Package |
| Standard equipment |
|---|
| Bumpers painted in body color |
| Driver fatigue detection |
| Emergency brake assist with pedestrian detection |
| Dashboard with applications (Techno Trim) |
| Glossy black skid plate – robust underbody protection with an elegant design |
| Steering wheel and gear shift in leather model |
| 16" aluminum rims bicolor with all-weather tires |
| Cab darkening (pleated blinds) |
| 7'' display incl. radio and Android Auto or Apple Car Play |
| Roof hood clear glass 700 x 500 mm incl. blackout blind and insect screen above the seating area (above rear bed in lift models) |
| lane keeping warning |
| Solar Preparation |
| Lightning spots in floor area |
| Preparation SAT , climate, solar including roof enhancement |
| Indirect lightning above and under wall-cupboards |
| Indirect kitchen lighting |
| LED-struts in sleeping area |
| Traffic sign recognition |
| Panorama window incl. blackout blind and insect screen above cab |
| Matt black awning incl. LED strips |
| Intelligent speed assistant |
| TV place preparation (2x 12 V, 1x 230 V socket outlet 1x Cinch AV) |
| Insect screen door |
a) All prices are recommended retail prices in EUR, based on the German retail prices. Prices in other countries may differ due to currency, country specific VAT, country specification, transportation charges or import duties. Your local dealer informes you about the applicable prices, taxes and duties for your country.
*The technically permissible total mass is a value specified by the manufacturer, which the vehicle must not exceed, even when loaded. It therefore has an influence on the permissible number of seats, options for selecting special equipment and remaining payload options.
Detailed information on weights and vehicle configuration can be found in our technical data, legal information section and in the configurator.
When buying a motorhome, camper van or urban vehicle (hereafter: motorhome), it is particularly important to choose the right layout and an appealing design. In addition, weight also plays an essential role. Family, friends, optional equipment, accessories and baggage – space must be available for all of these. At the same time, there are legal and technical limits to the configuration and load. Every motorhome is designed for a certain weight, which may not be exceeded during driving. For motorhome buyers, this raises the question: How should I configure my vehicle to accommodate passengers, baggage and accessories according to my needs without the vehicle exceeding this maximum weight? In order to make this decision easier for you, we provide you below with a few tips that are particularly important when selecting your vehicle from our portfolio:
| Description | Value |
|---|---|
| Pricea) | €77,990.00 |
| Total length | 738 |
| Total width | 232 |
| Interior roof height max. | 198 |
| Total height | 280 |
| Wheelbase | 4035 |
| Licensed seat no. (driver included)* | 4 - 5 (○) |
| Weight in drivable condition (with standard equipment)* | 2978 (2829 - 3127)* |
| Manufacturer-specified dimensions for optional equipment* | 174 |
| Maximum permissible total weight* | 3500 |
| Floor, wall, roof thickness | 40 / 30 / 30 |
| Berths standard / max. | 4 |
| Middle | 197 x 139 - 117 |
| Rear | 202 x 88 / 199 x 88 |
| Chassis & Cockpit |
|---|
| Driver airbag |
| Passenger airbag |
| Fuel tank 90 l diesel |
| Ad Blue tank 19 ltr. |
| Manual air conditioning (cab) |
| Central locking – vehicle and habitation door can be operated centrally |
| Lane widening – improved driving stability and maximum interior comfort |
| Height-adjustable driver and passenger seat |
| Comfort steeble cap covers |
| Rotable driver and passenger seat |
| Breakdown kit |
| Cup holder |
| Lane keeping warning |
| ASR + ESP incl. Hillholder |
| Traction Control |
| Cruise control |
| Headlights with black frame |
| Multifunction steering wheel with control element |
| Electric and heated exterior mirrors |
| Engine variation |
|---|
| 103kW (140 bhp) switch - EURO 6E |
| Cabine exterior |
|---|
| Body door 70 cm with waste bin, window, blackout blind and central locking incl. low coupe entrance |
| Lowered chassis extension for increased payload of 250 kg |
| Rear garage door, passenger side |
| Additional rear garage door driver‘s side |
| Hinged bathroom window (frosted glass) incl. blackout blind and insect screen |
| Roof hood clear glass 400 x 400 mm (kitchen, bedroom) incl. blackout blind and insect screen |
| Roof hood clear glass 400x400mm incl. blackout blind and insect screen in the bathroom |
| Cabine interior |
|---|
| Folding clothes rail in the toilet/shower room |
| Cold foam mattresses 100mm in fixed beds incl. slatted frames |
| Closet interior lighting |
| Headrests in middle seat group |
| Lashing rails with eyelets in rear garage |
| Furniture construction and ventilated upholstery and mattresses for optimum air circulation |
| Seating group platform with integrated storage compartment |
| Expandable table top |
| Wood decor Taupe |
| Integrated lifting bed electrically movable with 80 mm cold foam mattress incl. slatted frame (load capacity 200 kg) |
| Bed conversion single to double bed |
| Pad Tourer Moon |
| Kitchen |
|---|
| Drawer with cutlery tray |
| Three burner stove with electric stroke ignition for each individual and glass cover |
| Compressor refrigerator 153 l with ice compartment |
| Drawers with softclose |
| Sink with glass cover |
| Water supply |
|---|
| Fresh water tank insulated and heated |
| Cassette toilet |
| Warm water mixer tap |
| Modern bathroom sink |
| Water tank 100 l with filler neck, waste water tank 90 l |
| High performance tandem submersible pump |
| Gas/Electricity supply |
|---|
| CEE external connection for 230 V with RCD and charger |
| Electric charger for leisure and vehicle battery 12 V / 18 A |
| High-performance, maintenance-free leisure battery (95 Ah AGM) |
| Power input sidewall |
| Outer door gas box |
| Multifunctional panel |
| LED reading spots – flexibly adjustable, with integrated USB charging function |
| LED interior lighting |
| Gas bottle box (for 2 x 11 kg) |
| Gas regulator 30 mbar with gas hose (with country-specific adapter) |
| Smoke alarm |
| 230V socket and lighting in the rear garage |
| Heating |
|---|
| Gas heater 6 kW circulating air with 10 l boiler and manual control panel |
| Long Life Technologie |
|---|
| Underbody made of high-performance XPS foam and GRP |
| Roof and front / rear section in GRP |
| 12-years-tightness-warranty |
| GRP side walls |
| Chassis & Cockpit |
|---|
| Fiat Chassis |
| 10'' display including radio and navigation system + Android Auto or Apple CarPlay + cab automatic climate control |
| Fully digital 7" instrument cluster – digital driver display (speedometer) behind the steering wheel |
| Full LED headlights |
| Cruise control system, adaptive |
| Rain and light sensor |
| Electrical confirmed parking brake |
| Seat heating driver side and passenger side |
| Electric folding exterior mirrors |
| Preparation for Ford towbar |
| Carpet cab |
| Engine variation |
|---|
| 103 kW (140 bhp) automatic - EURO 6E |
| 132kW (180 bhp) automatic - EURO 6E |
| 132kW (180 bhp) Maxi Chassis (4t) Automatic - EURO 6E |
| Payload upgrade |
|---|
| Increase in max. permitted mass 3,65 t / 4,25 t (depending on the chassis) |
| Weight increase 4,4 t (only possible with maxi chassis) |
| Cabine exterior |
|---|
| Framed window incl. blackout blind and insect screen |
| Roof air conditioning (cooling and heating) |
| Clear glass roof hood 700x500mm incl. blackout blind and insect screen above the bed |
| Preparation for bicycle holder |
| Crank- / fold stakes rear |
| Cabine interior |
|---|
| Isofix for 2 seats |
| Premium mattress 130mm incl. slatted base frame |
| Storage system inside rear garage |
| Carpet for living room |
| 5th seat |
| Pad Tourer Mercury |
| Wooden shower inlay |
| Kitchen |
|---|
| Oven in kitchen unit (runs on gas) |
| Water supply |
|---|
| Waste water tank insulated and automatically heated |
| Multimedia |
|---|
| Smart TV 32“ |
| SAT system Telesat automatic 65 cm |
| TV-holder for flat screen (to 32") |
| Gas/Electricity supply |
|---|
| Additional battery 95 Ah AGM |
| Lithium habitation battery 150Ah (instead of standard battery) |
| Additional lithium habitation battery 150Ah |
| Gas extraction coupling in the gas box |
| Ice-ex with monitor (only in combination with DuoControl |
| DuoControl with Crash Sensor |
| Heating |
|---|
| 6 kW gas heater with manual control panel and 1.8 kW electric heating cartridge |
| Digital control panel for heating |
| Diesel heater 6 kW with 10 l boiler, circulating air, digital control panel and 1.8 kW electric heating cartridge |
| Hot water underfloor heating (in combination with convection heating) |
| Packages |
|---|
| Standard equipment |
| Winter package circulating air |
| SAT- Package |
| Standard equipment |
|---|
| Emergency brake assist with pedestrian detection |
| Driver fatigue detection |
| Bumpers painted in body color |
| 16" aluminum rims bicolor with all-weather tires |
| Dashboard with applications (Techno Trim) |
| Glossy black skid plate – robust underbody protection with an elegant design |
| Steering wheel and gear shift in leather model |
| Cab darkening (pleated blinds) |
| Roof hood clear glass 700 x 500 mm incl. blackout blind and insect screen above the seating area (above rear bed in lift models) |
| lane keeping warning |
| 7'' display incl. radio and Android Auto or Apple Car Play |
| Traffic sign recognition |
| Intelligent speed assistant |
| Preparation SAT , climate, solar including roof enhancement |
| Solar Preparation |
| Lightning spots in floor area |
| Indirect lightning above and under wall-cupboards |
| LED-struts in sleeping area |
| Indirect kitchen lighting |
| Panorama window incl. blackout blind and insect screen above cab |
| Matt black awning incl. LED strips |
| TV place preparation (2x 12 V, 1x 230 V socket outlet 1x Cinch AV) |
| Insect screen door |
a) All prices are recommended retail prices in EUR, based on the German retail prices. Prices in other countries may differ due to currency, country specific VAT, country specification, transportation charges or import duties. Your local dealer informes you about the applicable prices, taxes and duties for your country.
*The technically permissible total mass is a value specified by the manufacturer, which the vehicle must not exceed, even when loaded. It therefore has an influence on the permissible number of seats, options for selecting special equipment and remaining payload options.
Detailed information on weights and vehicle configuration can be found in our technical data, legal information section and in the configurator.
