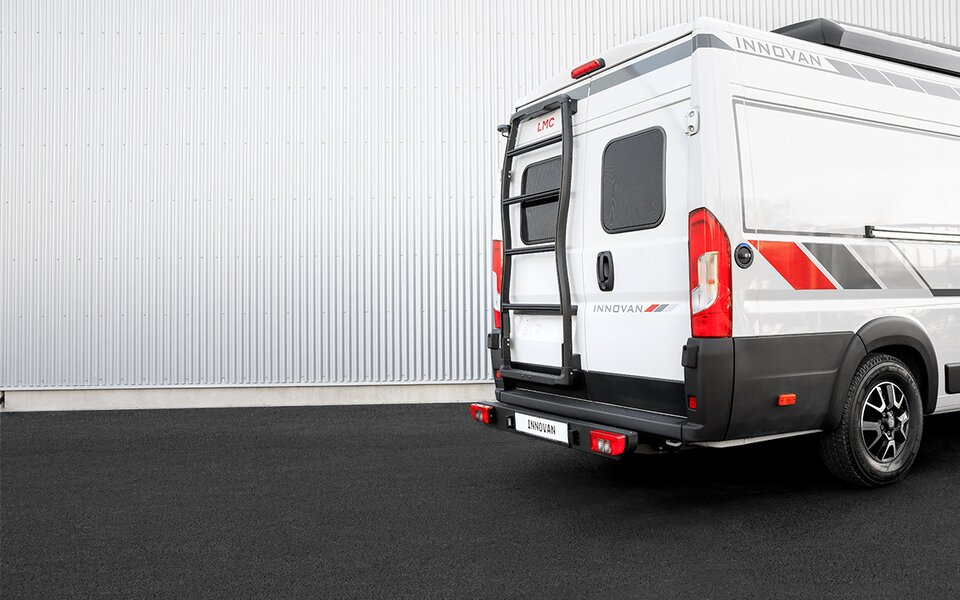

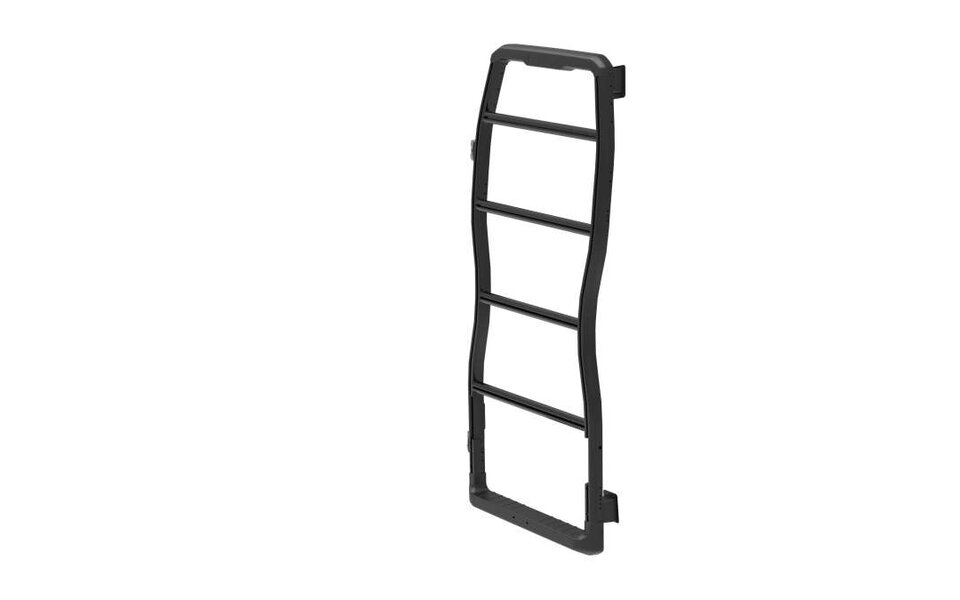

With the LMC Backrack+

Item no. 8502504

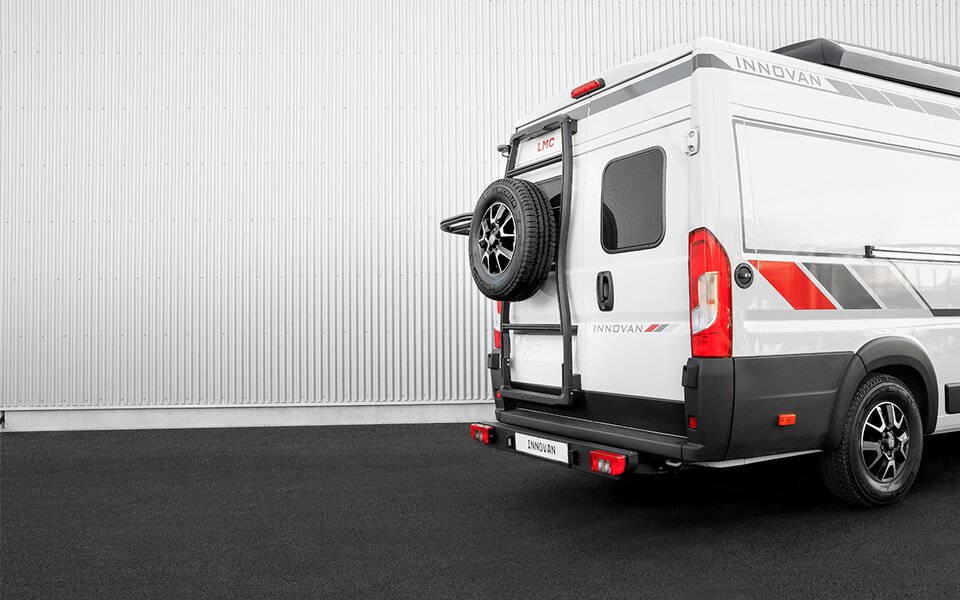

Innovative, individual, modular. The Backrack+ opens up a new world of transportation and gives your camper van a very special look. Regardless of whether you have bicycles, e-bikes, a spare wheel or want to transport a practical aluminum box, the right rack accessory is installed in no time. Other components (e.g. ski / snowboard carriers) are already being developed and the versatility of the system is continuously being expanded. The Backrack+ sets new standards in design and function.

The assembly of the Backrack+ must be carried out by the trading partner.

Technical specifications:

• own weight 8,6 kg
• load 70 kg
• Type approval according to ECE R26
• Suitable for all camper vans based on FIAT Ducato

Item no. 8502432

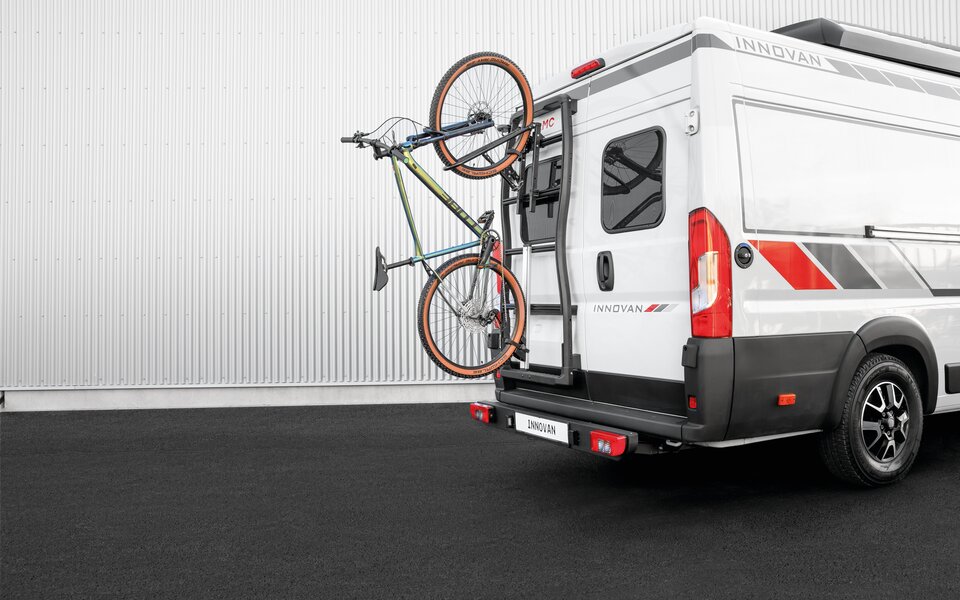

The Bike Carrier Shuttle is ideal for transporting 2 bikes (or e-bikes). To mount the bikes, the rear brake is applied and the bike is placed on its rear wheel. The front wheel is then leaned against the rear edge of the Bike Carrier Shuttle and the bike is pushed into the bracket with minimal effort via the front wheel. Once the bike is mounted in the bracket, the wheels can easily be lashed.

Technical data:

• Dead weight 5,4 kg
• Load capacity 28 kg per support arm
• on a left as well as a right mounted backrack + matching
• The mudguards must be removed from the front wheels before transportation
• Usable up to 3" tire width and 26-29 inch wheels

Package contents:

• 1 x Bike Carrier Shuttle (for the transport of two bikes two Bike Carrier Shuttles are needed)

Requires:

• Backrack+
• Number and Light Bar

Item no. 8502431

The Bike Carrier Swing is ideal for transporting 2 bikes (or e-bikes). The bikes are simply pushed onto the carrier. The carrier and bikes can then be swung upwards with minimal effort.

Technical data:

• Dead weight 31,2 kg
• Load capacity 50 kg
• Swivel arm with low actuating force (approx. 10 kg)
• Can only be mounted on left-hand door
• Usable up to 3" tire width and 26-29 inch wheels (24 inch with wheelbase 950 mm and 29 inch with wheelbase 1300 mm)

Package contents:

• Bike Carrier Swing

Requires:

• Backrack+
• Number and Light Bar
• Retrofit fit electric preparation

Item no. 8502433

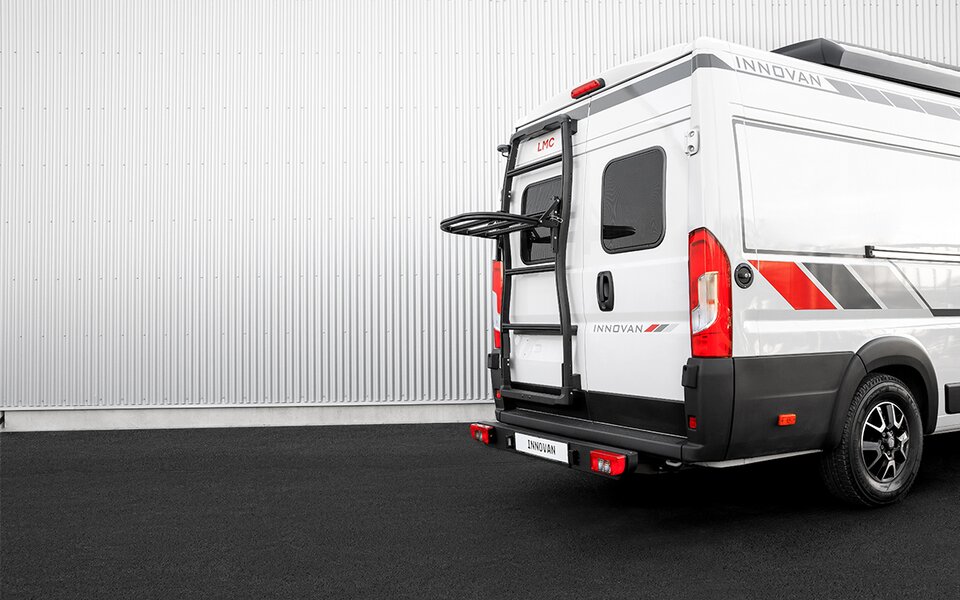

The Mini Rack provides additional storage space whenever it is needed. It is perfect for transporting extra luggage. Thanks to the clever design of the Mini Rack, it enables the load to be lashed down in any number of ways, so you can rest assured it is always safely secured. When the Mini Rack is not in use, it can be simply folded up and secured using the safety bolt.

Technical data:

• Dead weight 4,5 kg
• Load capacity 35 kg
• can be mounted in two positions (top and bottom). Thus, two Miniracks per Backrack + are possible.
• Loading space dimensions: approx. 720 mm x 470 mm

Package contents:

• Mini Rack
• Safety bolt

Requires:

• Backrack+

Item no. 8502507

A duplicate registration plate and lights are required for all components in the Backrack+ range that affect either the beam angle of the rear lights or the legibility of the registration plate.

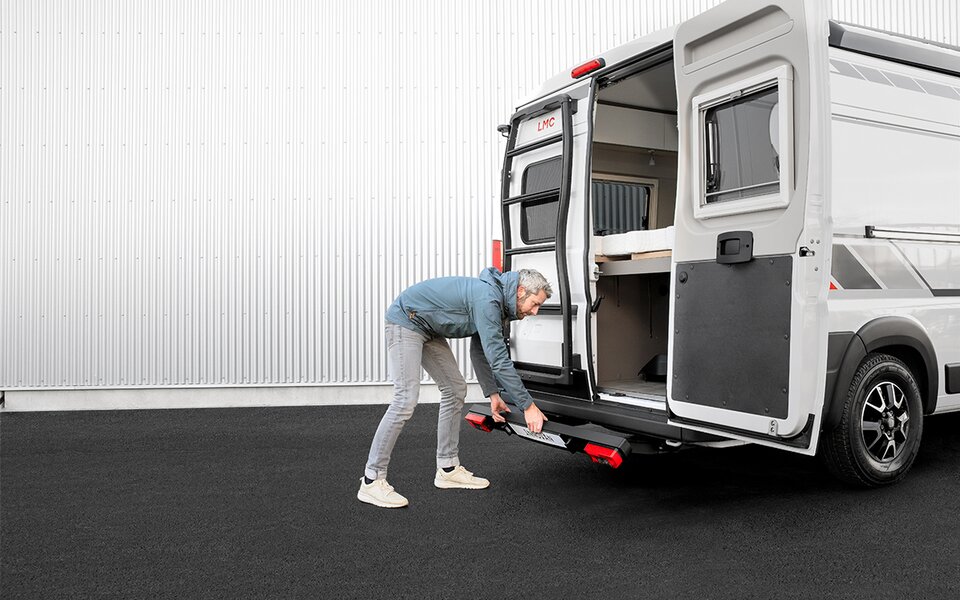

An additional fold-down step allows for considerably easier rear access to the camper van. Once the mechanical fittings are in place, the Number and Light Bar can be mounted and dismounted with ease.

We recommend having the fitting carried out by a dealer.

Technical data:

• Dead weight:

≤ 6m: 15,1 kg
> 6: 15,8 kg

• Max. load capacity 100 kg (short-term load)

Package contents:

• Number and Light Bar
• Mechanical fittings

Requires:
Retrofit fit electric preparation part number 8502045 (Fiat Ducato series 7) or part number 8502160 (Fiat Ducato Serie 8 and Fiat Ducato series 9). Please contact one of our retail partners for more information or to make a purchase.

Item no. 8502265

The license plate and light repetition is necessary for all components of the Backrack+ system that either impair the rear lights' beam angle or obstruct the visibility of the license plate. An additional foldable step significantly facilitates rear entry into the camper van. With the mechanical preparation in place, the Number and Light Bar can be mounted and dismounted in a short time.

Installation by a retail partner is recommended.

Load Capacity:

• Up to 100kg (short-term load)

Delivery Contents:

• Number and Light Bar

Requirement: The Number and Light Bar without preparation is suitable only if your Innovan was ordered from the factory! This ensures the necessary mechanical preparation is in place. If this is not the case, please choose the option that includes preparation.

Item no. 8502506

A duplicate registration plate and lights are required for all components in the Backrack+ range that affect either the beam angle of the rear lights or the legibility of the registration plate.
An additional fold-down step allows for considerably easier rear access to the camper van. Once the mechanical fittings are in place, the Number and Light Bar can be mounted and dismounted with ease.

We recommend having the fitting carried out by a dealer.

Technical data:

• Dead weight:

≤ 6m: 15,1 kg
> 6: 15,8 kg

• Max. load capacity 100 kg (short-term load)

Package contents:

• Number and Light Bar
• Mechanical fittings

Requires:
Retrofit fit electric preparation part number 8502045 (Fiat Ducato series 7) or part number 8502160 (Fiat Ducato Serie 8 and Fiat Ducato series 9). Please contact one of our retail partners for more information or to make a purchase.

Item no. 8502473

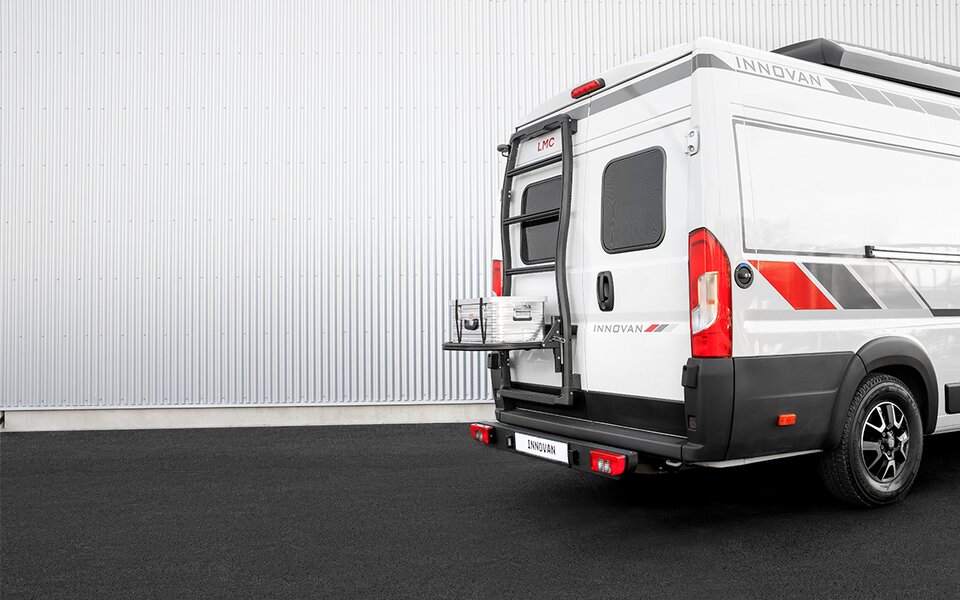

The Snap Box is a robust and versatile aluminium box that has been specially developed for outdoor activities. Its unique quick- release fastener system allows it to be secured to the Mini Rack in just a few simple steps. Whether you are camping, hiking, climbing or on a road trip, the Snap Box is a reliable companion that will protect your valuable equipment against water, dirt and impacts.
Designed to fit perfectly on the Mini Rack, the Snap Box is a lightweight solution that provides just the right amount of storage space. It provides ample room for tools, sports equipment and other important things. The box is robust and hard-wearing and, thanks to its thick outer wall, can be used as an extra seat.
The highlight of the Snap Box is the quick-release fastener on the fastening rail that allows the box to be mounted or removed in a single step. This robust and durable closing system is user- friendly and will save you time and energy. while also sparing you the need for additional lashing straps. Both the box itself and the connector to the Mini Rack are lockable.

Technical data:

• Snap Box outer dimensions: 580 x 385 x 398 mm
• Dead weight: 6.5 kg
• Load: 25 kg

Contents:

• Snap Box
• Connector for Mini Rack
• Key for Snap Box
• Key for quick-release fastener

Requires

• Backrack+ with Mini Rack
